Strands Lighting Explained: An Overview of Light Bars, Driving Lights & Work Lights

If you want to optimally equip your vehicle for off-road adventures, overlanding, or work, powerful auxiliary lighting is essential. But which Strands lamp is actually suitable for which application?

In this guide, you'll get a complete overview of the three most important categories – concisely explained and practical.

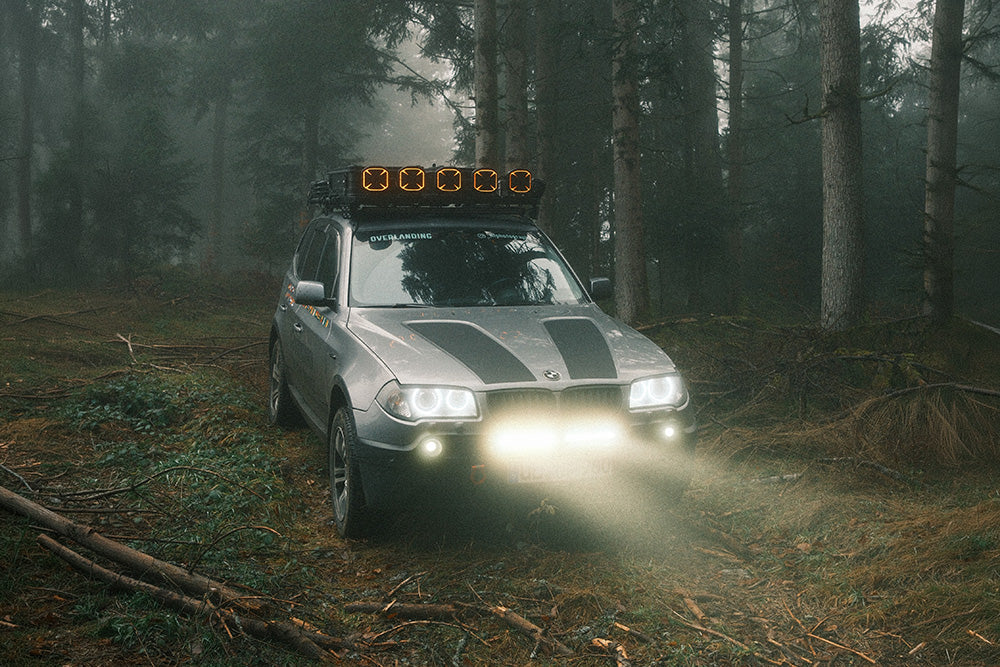

Light Bars – maximum illumination in width and distance

Light Bars are the classic LED bars and range – depending on the model – from approx. 8 to 50 inches. Their big advantage: they not only illuminate far ahead but also wide into the surroundings.

This makes them the perfect choice for off-road driving on rough terrain, forest paths, and narrow trails, as well as situations where you need to see a lot to the side.

• Integrated position light (white, yellow, or orange)
• Easy wiring thanks to DT4 connector
• Mounting directly on the roof rack without drilling
• Mounting brackets always included

A highlight of many models is the Experience Mode: In E-mode, the Light Bar is street-legal for use as high beam. In Experience Mode, it unleashes its full performance – significantly more range and light intensity for off-road use.

In addition, top models offer a so-called Hello function: two flashes of the high beam – and the position light briefly flashes.

Driving Lights – focused high beam for maximum range

Driving Lights are compact LED headlights, usually round or oval, and specifically designed for use as high beams.

In contrast to Light Bars, they illuminate more narrowly but significantly further ahead.

Ideal for fast driving in the dark, country roads, or open stretches, as well as anyone who wants maximum high beam range.

• Position light in various colors
• E-mode (street-legal) and Experience Mode
• Easy installation with included brackets

Models with distinctive position light designs are particularly striking – a real visual highlight on the vehicle.

Work Lights – perfect illumination around the vehicle

Work Lights are not high beams – they are designed to illuminate your surroundings.

Typical applications include campsites, working on the vehicle, maneuvering in the dark, or illuminating the area around the vehicle.

Here, the focus is on wide, even illumination and maximum flexibility in mounting.

• DT4 connector → Work Lights with position light
• DT2 connector → Work Lights without position light

Installation: quick & easy on the roof rack

A big advantage of all Strands lamps: Installation is extremely straightforward.

Thanks to the included brackets, you can attach the lamps directly to a roof rack:

• Insert channel nut into the T-slot
• Position bracket
• Secure with M8 screw
• Done

No drilling, no complicated adjustments.

Important: Observe reference number for high beams

For all lamps used as high beams, there is an important rule in road traffic:

Each lamp has a reference number (e.g., 20). All installed high beams together must not exceed a total value of 100.

Especially if you combine several auxiliary headlights, you should definitely familiarize yourself with the legal requirements. In our detailed guide Headlight knowledge for off-road enthusiasts in Europe , we go into detail about these regulations, E-approvals, and correct use in road traffic.

Conclusion – which Strands lamp suits your setup?

• Light Bar → wide + far, perfect for off-road and overview
• Driving Light → focused + maximum range, ideal as high beam
• Work Light → all-around illumination for camp & work

Depending on the application, you can combine your setup individually – and expand it flexibly thanks to easy installation.

If you are still unsure which solution best suits your vehicle, a quick chat with the support team is worthwhile.

Comparison: Light Bar vs. Driving Light vs. Work Light

Category	Light Pattern	Application Area	Strengths	Typical Mounting
Light Bar	Wide + far	Off-road, forest, trails	Maximum overview around the vehicle	Roof rack (e.g., ExRoof)
Driving Light	Narrow + very far	Road, fast driving	Maximum range forward	Front (bumper / grille)
Work Light	Wide / area	Camping, work, maneuvering	Illumination around the vehicle	Side, rear, roof rack
