Mobile Winch System with 1.6 tons and 22m Synthetic Rope

The mobile winch system from horntools is the flexible solution for anyone who doesn't need a permanently fitted rear winch. Thanks to the quick-release mount, the winch can be fitted in a short time and removed again after use.

Depending on the vehicle and electrical system, the system is available as a 12 V or 24 V version. It is particularly suitable for hunting, forestry and work applications, as well as for lighter pulling tasks around your vehicle.

Mobile rear winch – quickly fitted and flexible to use

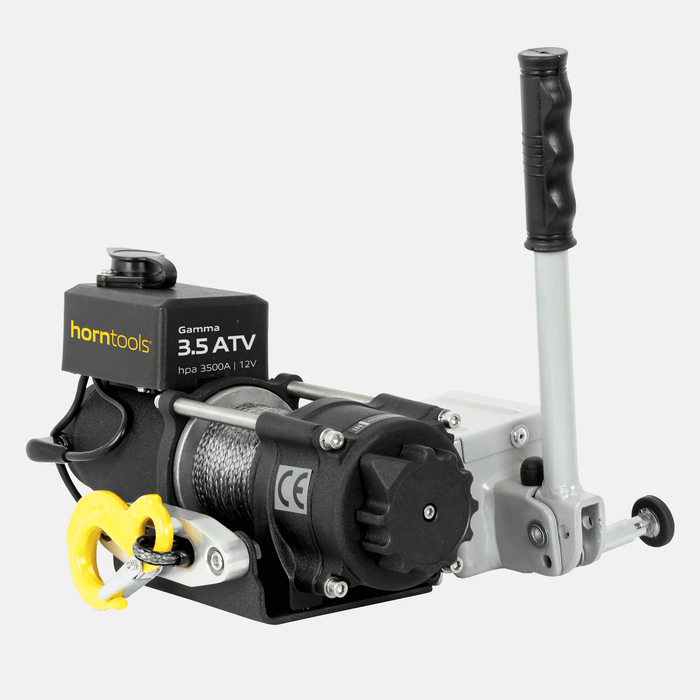

The quick-release mount allows fitting on a suitable horntools winch carrier or on a suitable trailer hitch. This lets you use the winch exactly when you need it, without having to permanently install it on the vehicle.

For use on a trailer hitch, a matching cable set extension is additionally required.

Ideal for hunting, forestry and work applications

Typical areas of use are:

• Use as a mobile rear winch
• Hunting and forestry applications
• Pulling game or equipment
• Lighter pulling tasks around the vehicle
• Pulling and moving loads on the ground
• Work applications on the farm, property or in the field
• Flexible use with changing vehicles or mounting positions

Quick-release mount instead of fixed installation

The great advantage of the system lies in its flexibility. The winch can be attached to the intended carrier with just a few simple steps and then removed again.

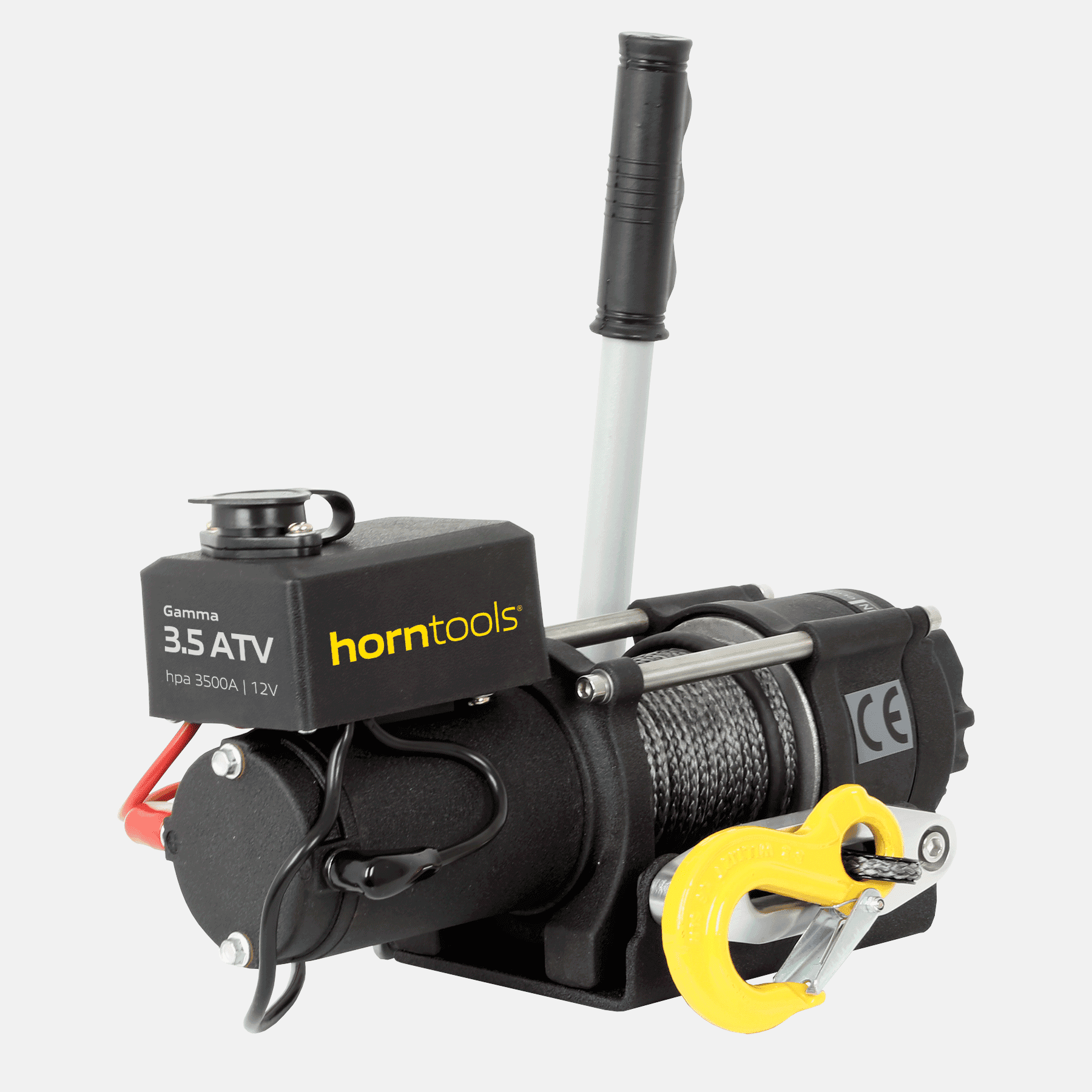

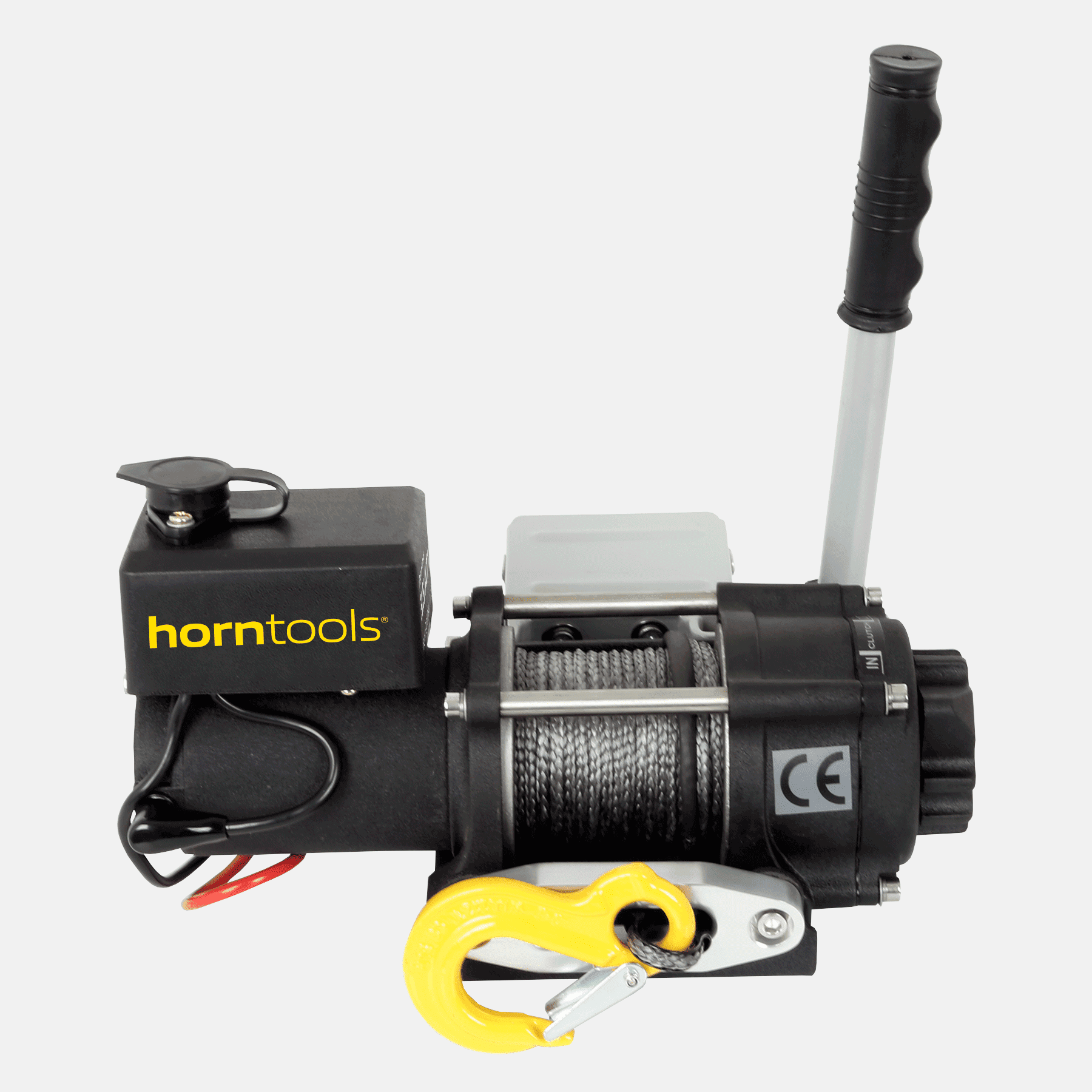

Fitted is the compact Gamma 3.5 with 22 metres of synthetic rope. The winch itself technically has a pulling capacity of up to 1.6 tonnes.

Important: In combination with the supplied quick-release mount, the maximum permissible pulling capacity of the mobile system is 300 kg. The quick-release mount is not designed for higher pulling forces.

Product highlights

• Mobile winch system
• Available in 12 V and 24 V
• Quick to fit and remove again
• Ideal as a mobile rear winch
• Particularly suitable for hunting, forestry and work applications
• Maximum permissible pulling capacity of the mobile system: 300 kg
• Gamma 3.5 winch with a technical pulling capacity of up to 1.6 tonnes
• 22 m synthetic rope
• Quick-release mount included
• For horntools winch carriers and suitable trailer hitches
• Freespool lever
• Reinforced rope drum

Technical data

• Voltage: 12 V or 24 V
• Rope: 22 m synthetic rope
• Technical pulling capacity of the Gamma 3.5: 1,600 kg
• Max. permissible pulling capacity with quick-release mount: 300 kg

Scope of delivery

• Gamma 3.5 winch
• 22 m synthetic rope with hook
• Aluminium cable window
• Quick-release mount
• Fixing screws
• Corded remote control
• Operating instructions

Important note: When using the supplied quick-release mount, a pulling capacity of 300 kg must not be exceeded. The winch is intended exclusively for ground pulling and is not suitable for lifting loads.
