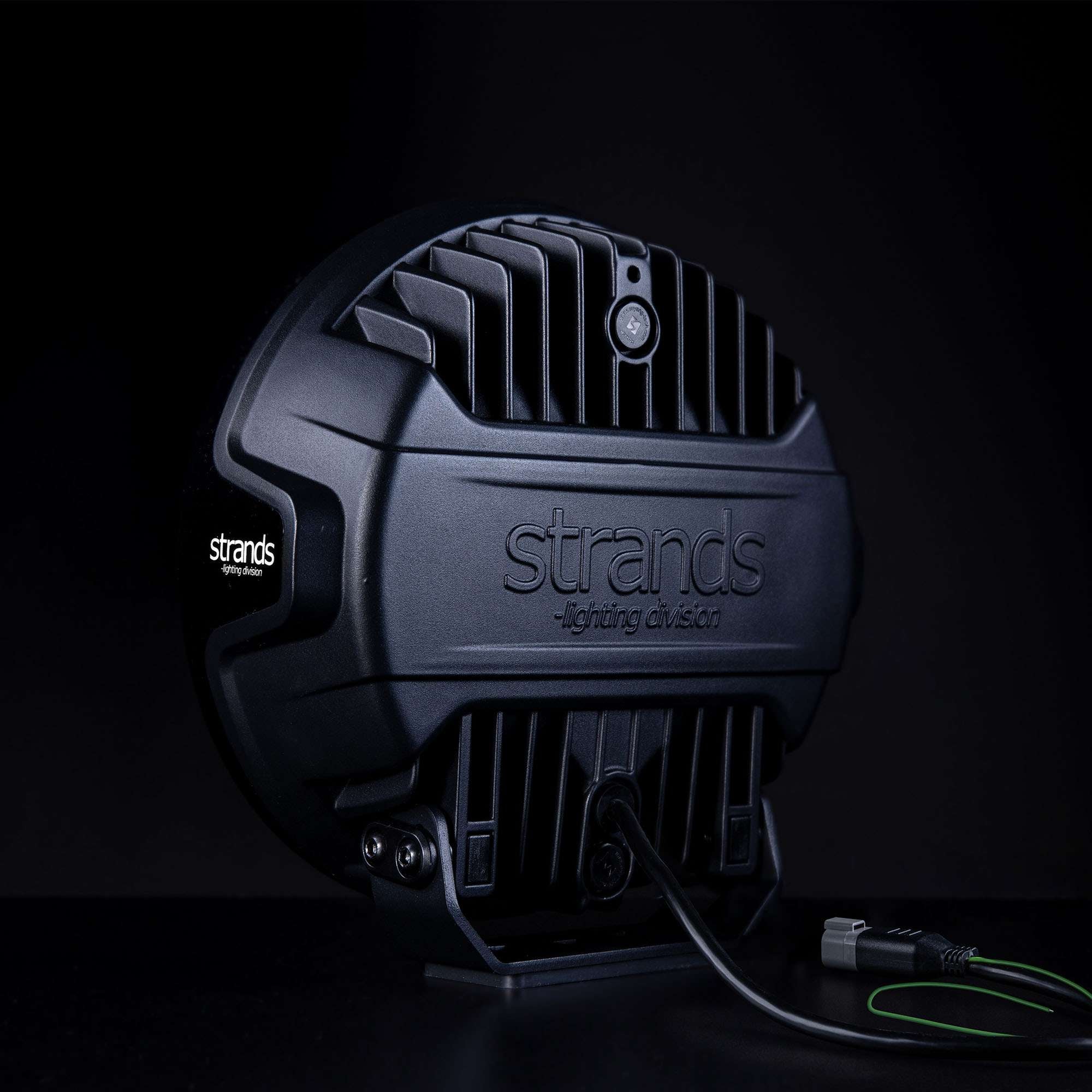

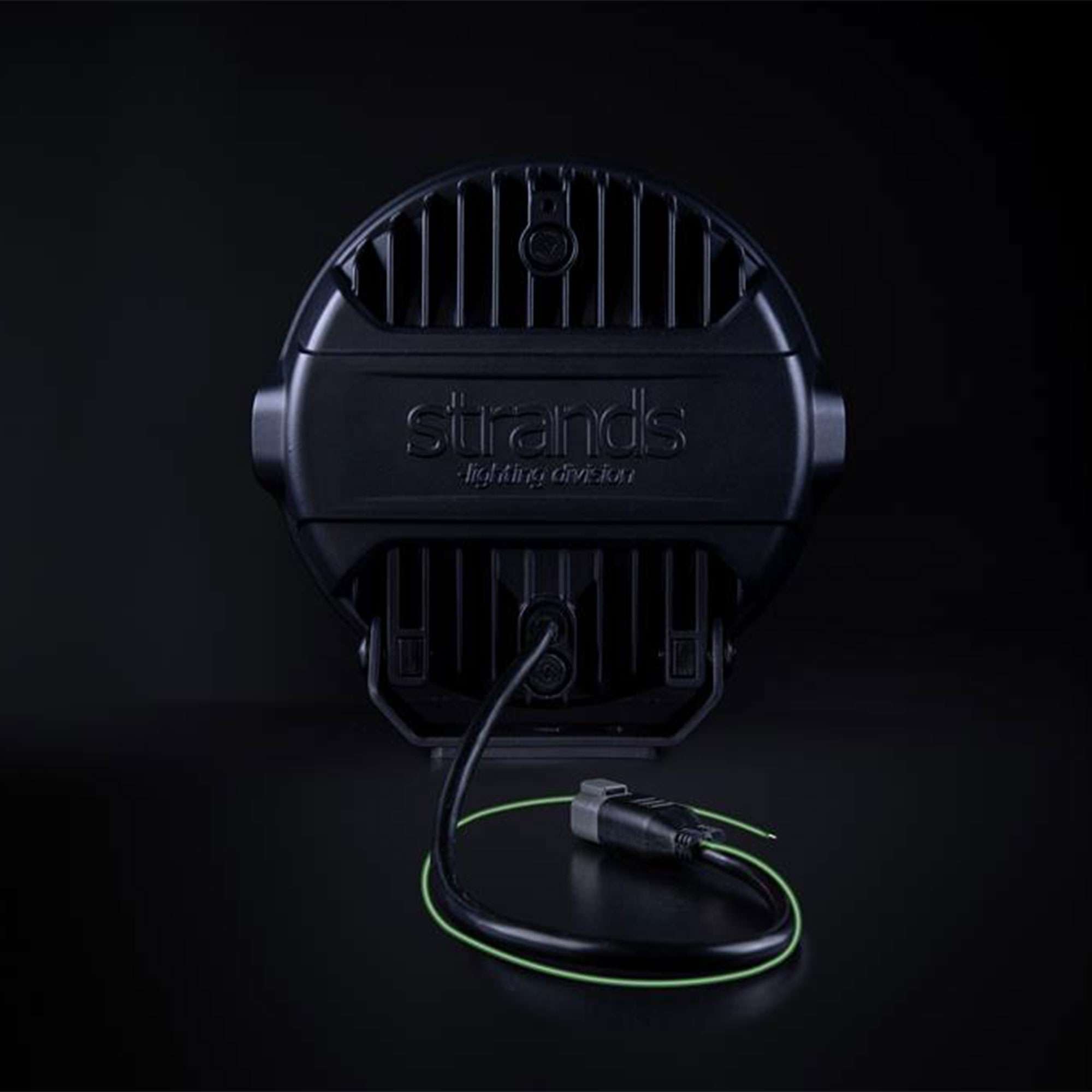

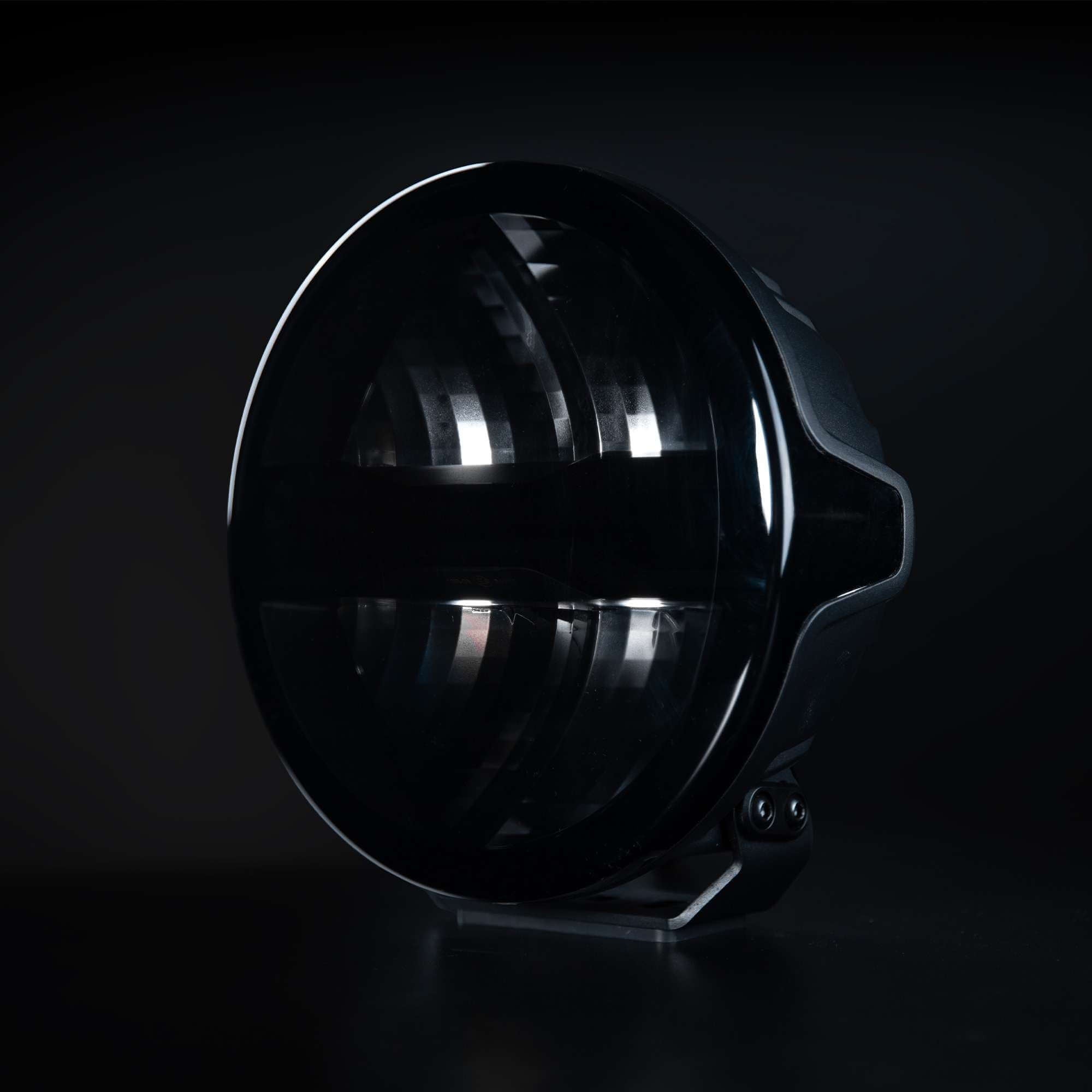

Strands FOR9T DRAGON DRIVE DRIVING LIGHT 9″

10-48
135
9300
IP67
Sale price2.328 kr Regular price2.400,00 kr
Save 72,00 kr

Tax included. Free Shipping from €300*

In stock – estimated delivery in 3 to 5 working days
Strands FOR9T DRAGON DRIVE DRIVING LIGHT 9″ – Video

GTIN: 7323030193522SKU: 270969

The Strands FOR9T Dragon Drive LED auxiliary light combines modern lighting technology with powerful performance and is designed for use on roads and off-road. Thanks to E-Mode (R148/R149, Ref. 20), it is approved for road use, while Xperience mode delivers maximum performance for demanding conditions.

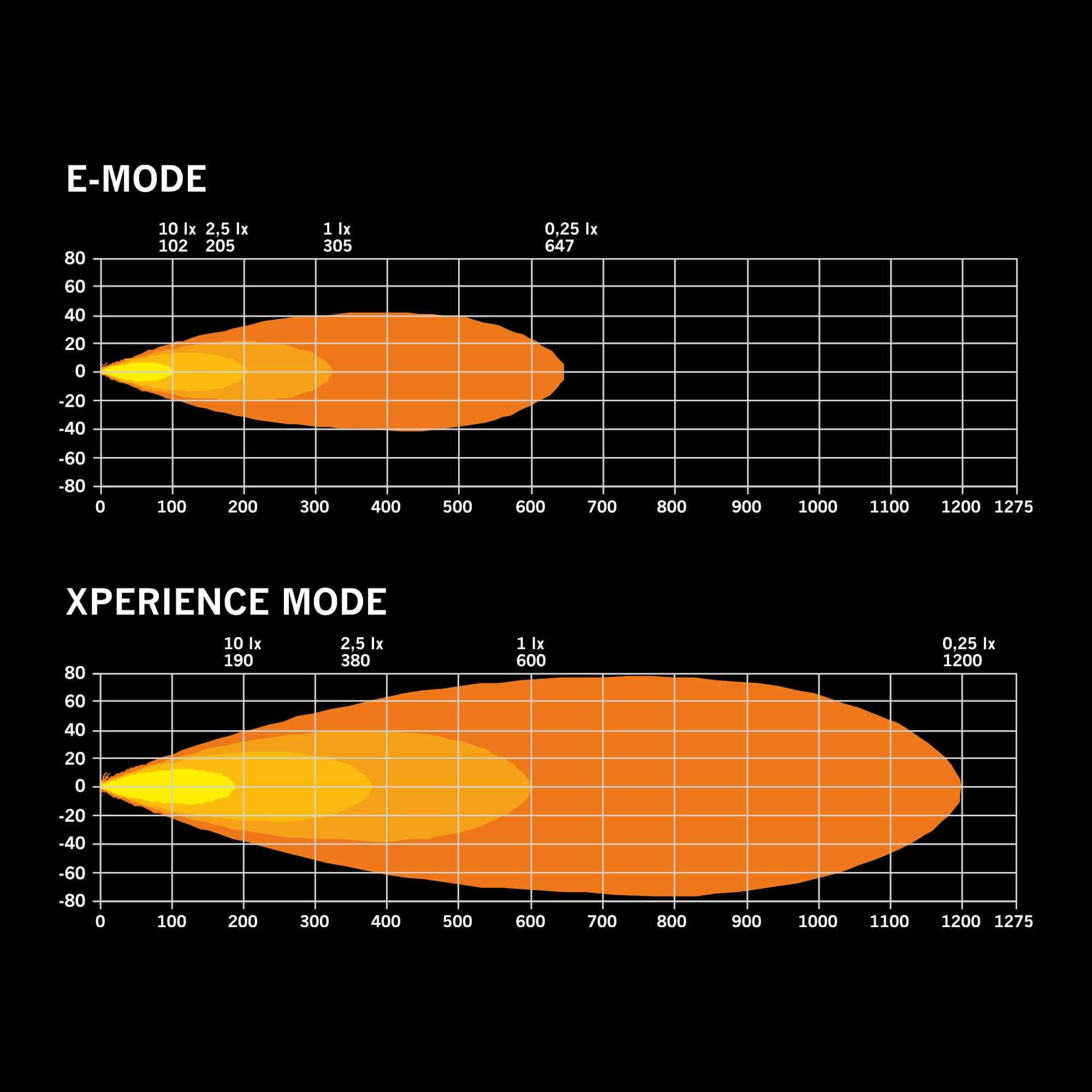

In Xperience mode, the Strands LED auxiliary light produces 9,300 lumens with a color temperature of 6,500 Kelvin and achieves a range of over 600 meters. This ensures clear and far-reaching illumination for night driving. E-Mode is controlled via the green cable and provides legally compliant light output.

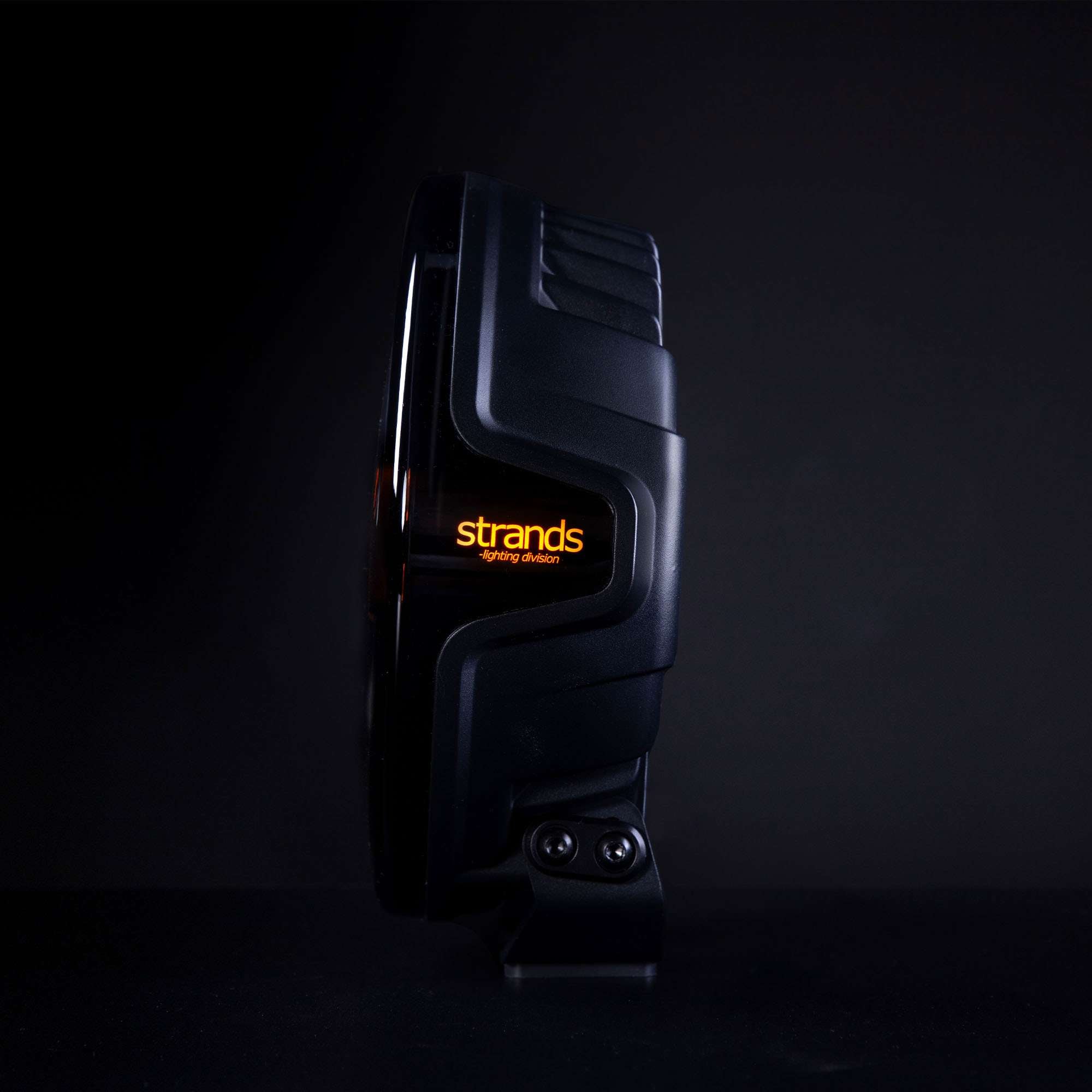

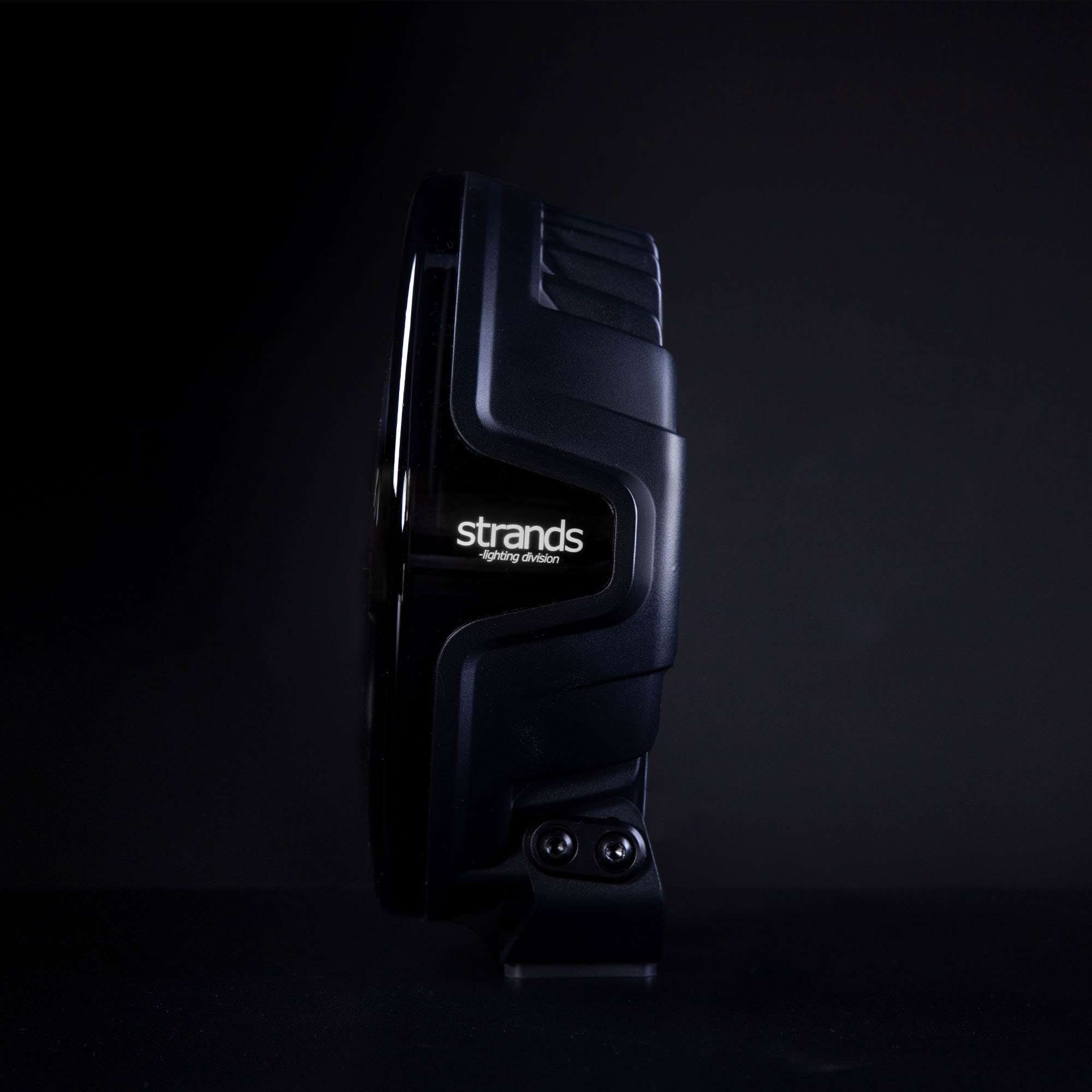

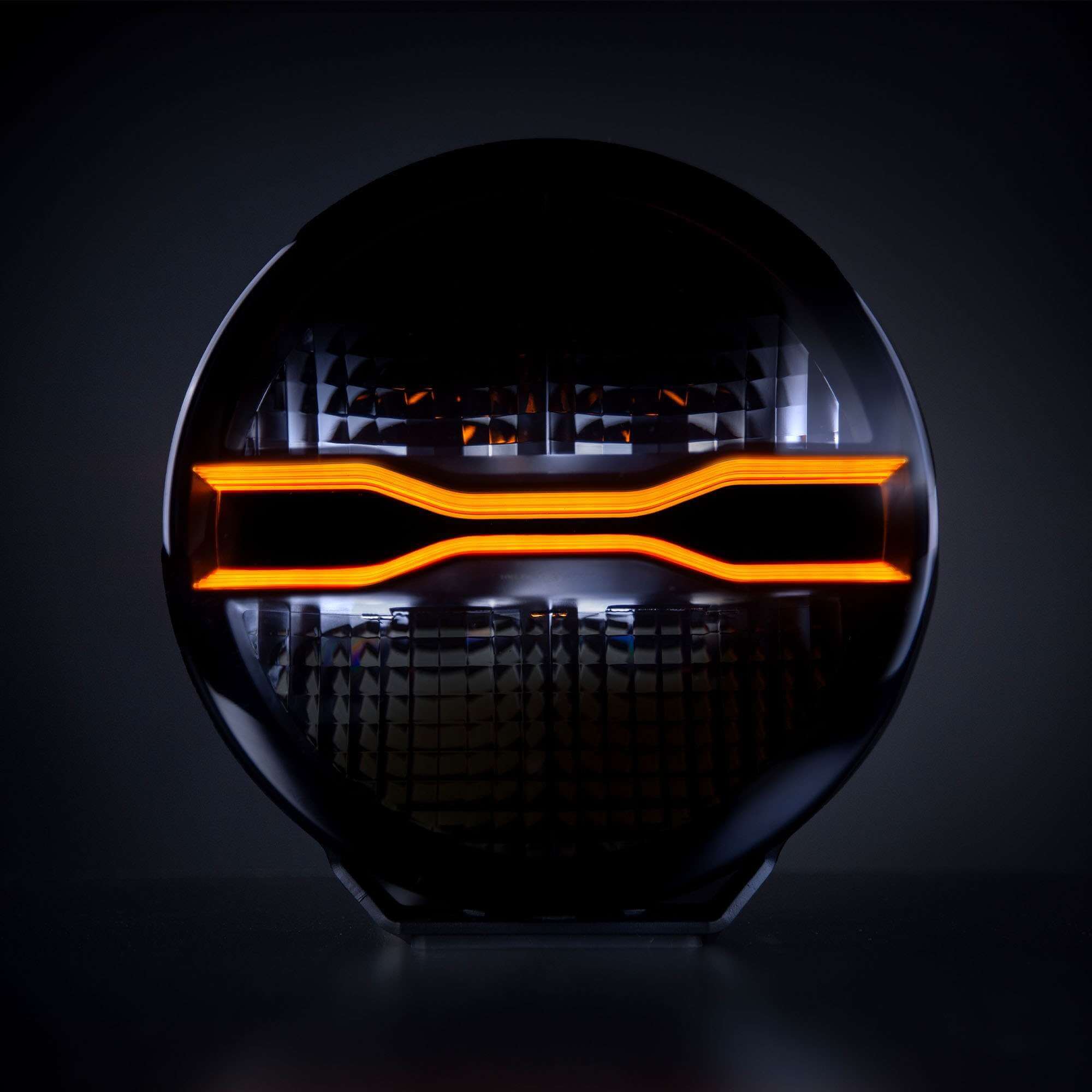

The robust construction with IP67 protection ensures reliable use even in difficult conditions. Thanks to the 550 mm cable and DT-4 connector, installation is quick and uncomplicated. Operation is possible with up to 48 V, making it suitable for a wide range of vehicles. The integrated position light in the FOR9T design is optionally available in white or amber and provides a distinctive look.

Unit
PCS
Voltage (DC)
10-48
Theoretical effect
145
Consumption
135
Functions
High beamWhite pos.Amber pos.Logo light
Consumption specific function
X-mode 135WE-mode 30WWhite pos. 5WAmber pos. 5W
Theoretical lumen
14000
Actual lumen
9300
1 lux @
600
Color temperature
6500
Beam pattern
Extended Beam
Beam angle
17.4
Connection
DT-4PIN
Cable length
550
Color housing
Black
Color LED's
White | Amber
Material bracket
Stainless steel
Material housing/chassi
Aluminum
Material lens
Polycarbonate
Length
220
Depth
90
Height
220
Height including bracket
226
Weight
2.3
IP-class
IP67
Operating temperature
-40 - +65
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

Cable assignment

Black
- (Negative)
Red
+ (High-beam)
White
+ White position light (positive)
Yellow
+ Amber position light (positive)
Green
+ E-mode (loose cable)
