Strands NUUK D-LINE LED BAR 30″

10-36 V
165 W
15500 lm
IP68/69K
Sale price2.904 kr

Tax included. Free Shipping from €300*

In stock – estimated delivery in 3 to 5 working days
Strands NUUK D-LINE LED BAR 30″ – Video
GTIN: 7323030193270SKU: 809453

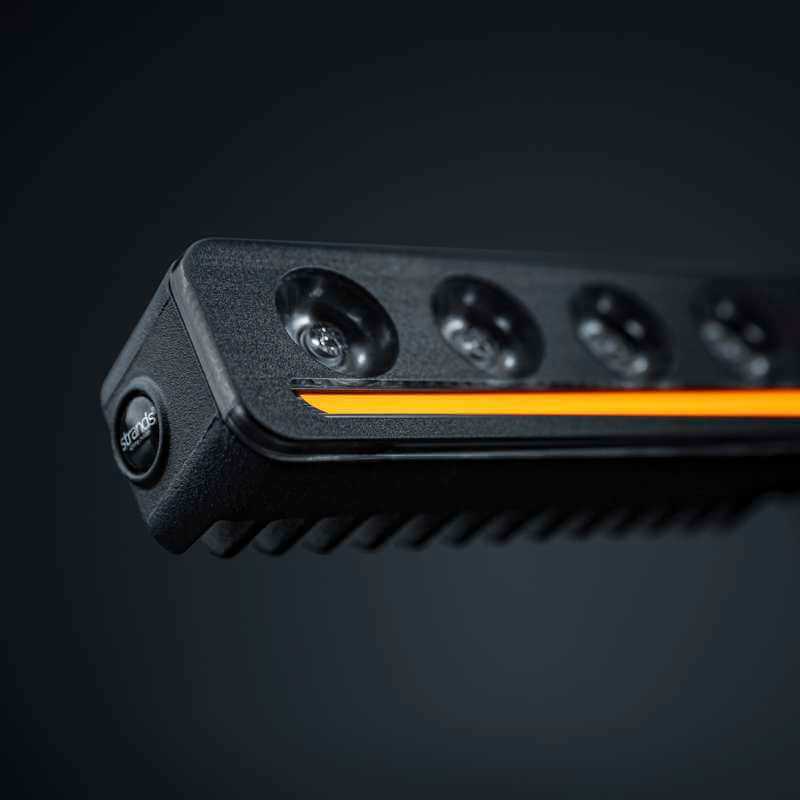

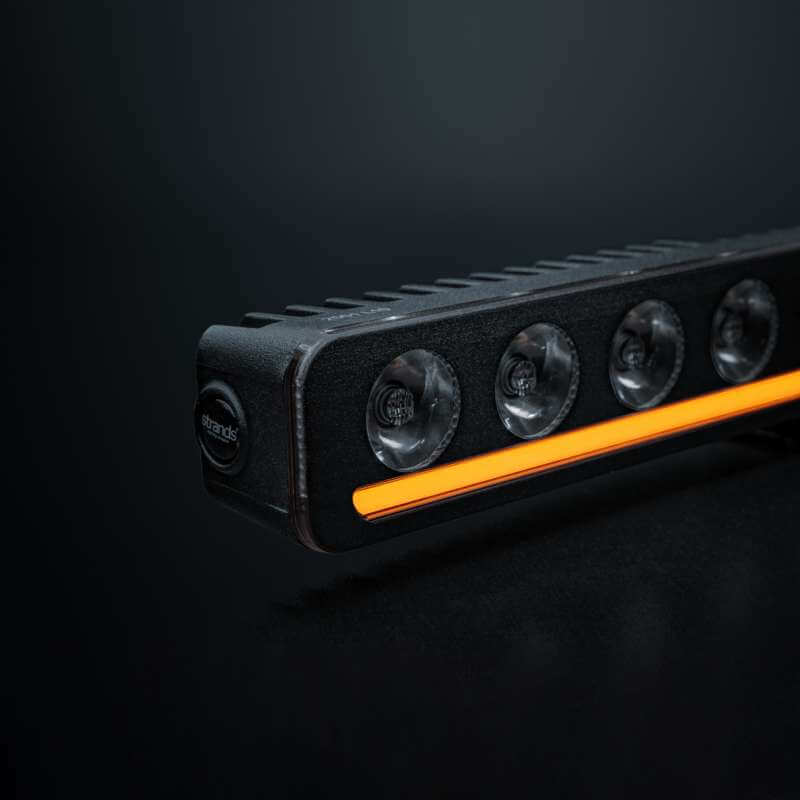

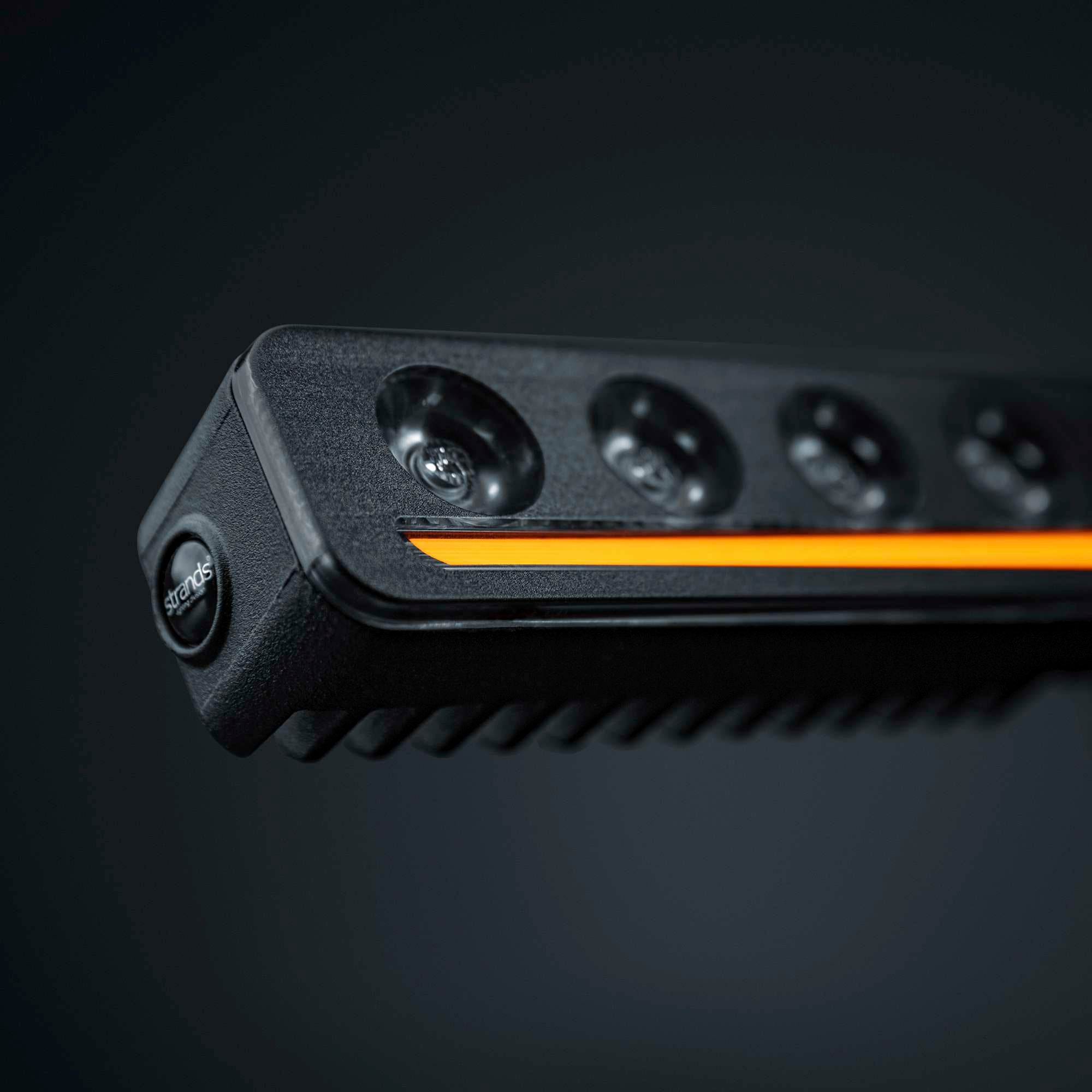

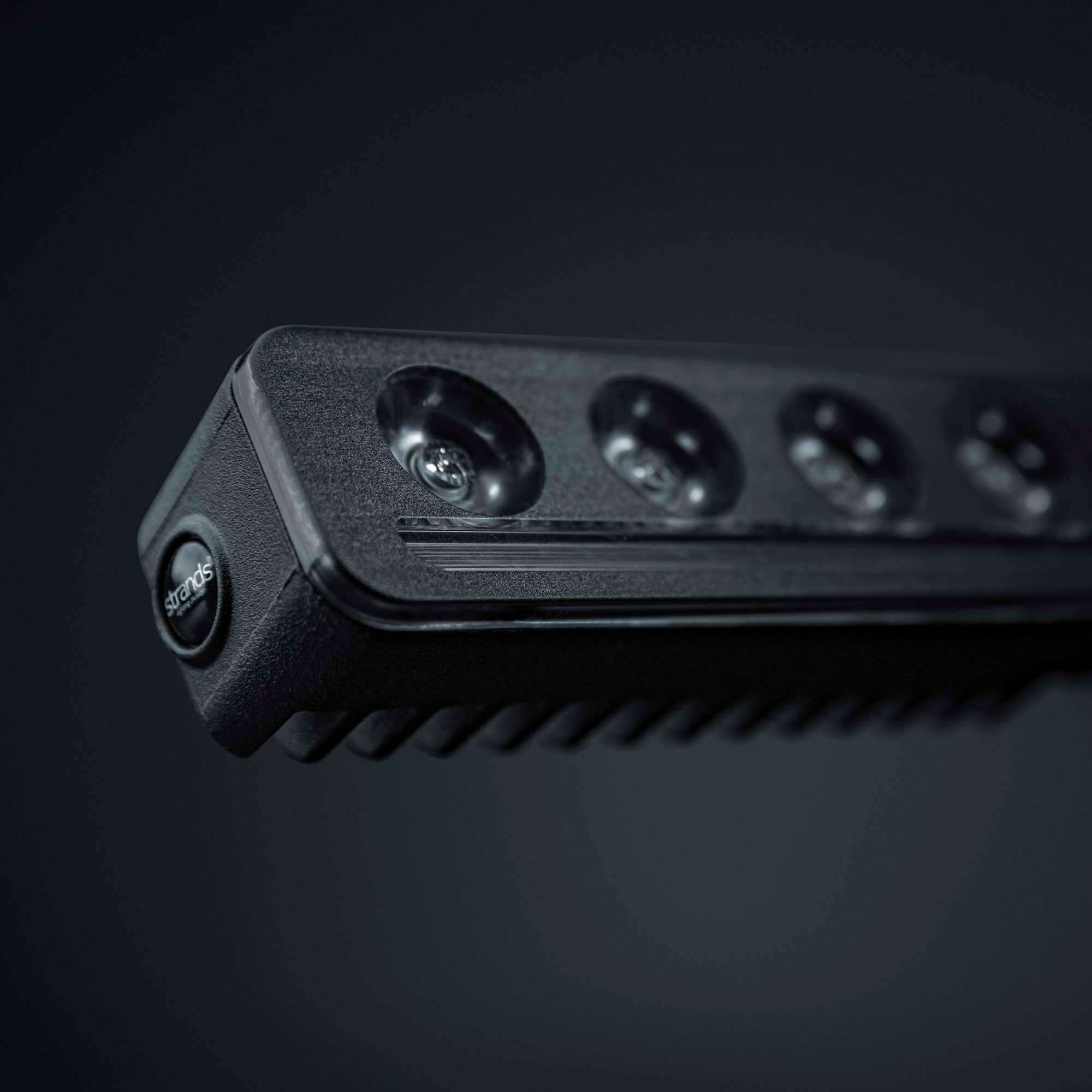

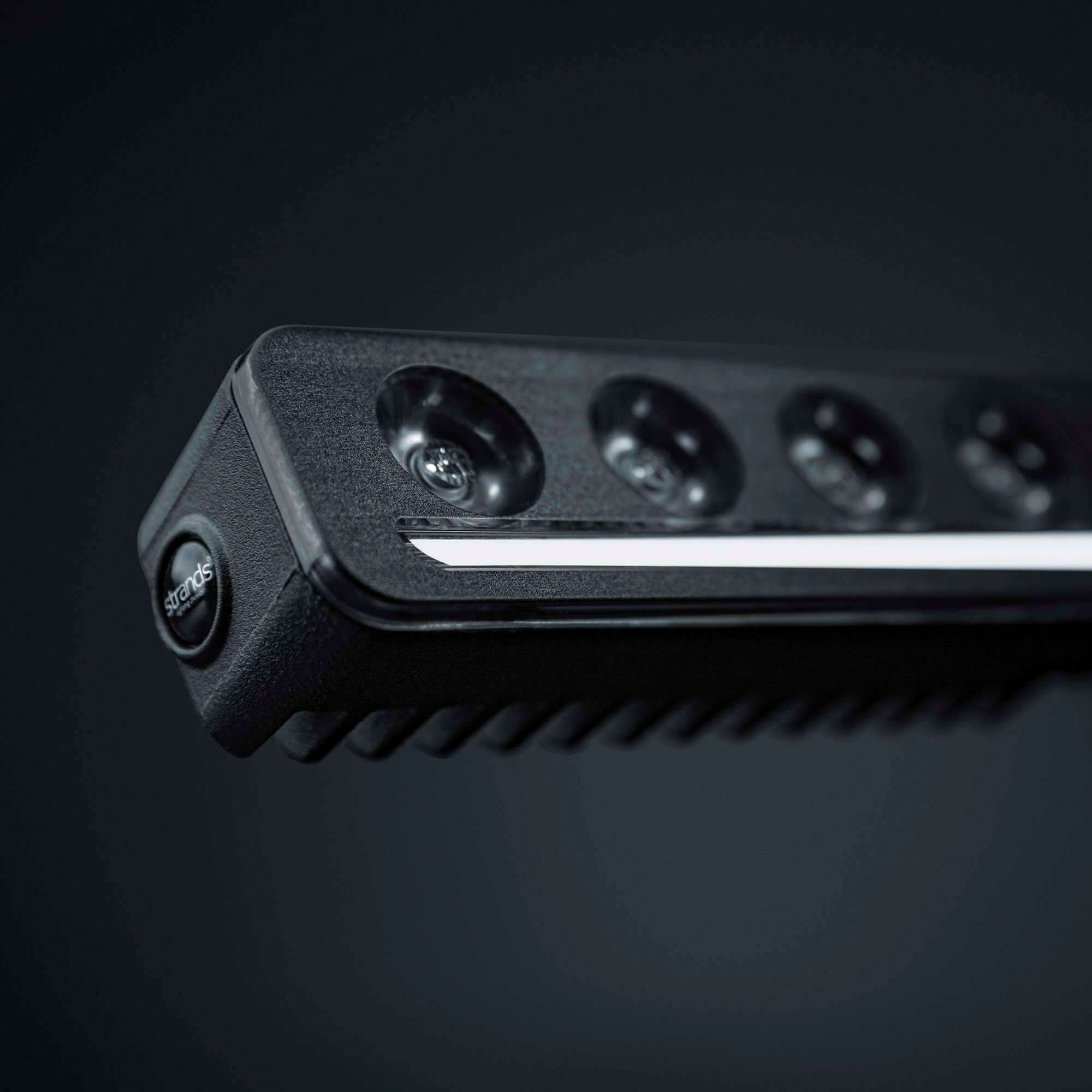

The Strands Nuuk D-Line 30" LED auxiliary light combines a sleek design with high light output and is ideal for modern vehicle setups. With a depth of only 3.3 cm and a height of 4.5 cm (incl. bracket), the Strands LED Lightbar can be discreetly integrated while still providing strong performance.

In Xperience mode, the Strands LED auxiliary light delivers 15,500 lumens and reaches a range of up to 556 meters. The extended light pattern ensures even illumination forward and significantly improves visibility during night drives. The E-certified mode (R148/R149, Ref. 20) meets legal requirements and offers advantages in poor weather conditions.

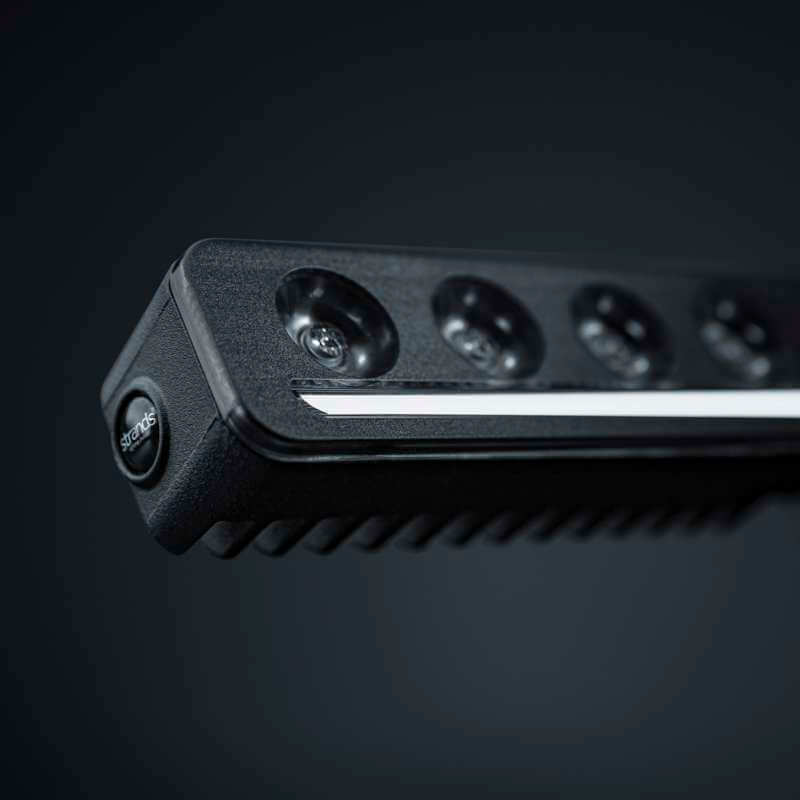

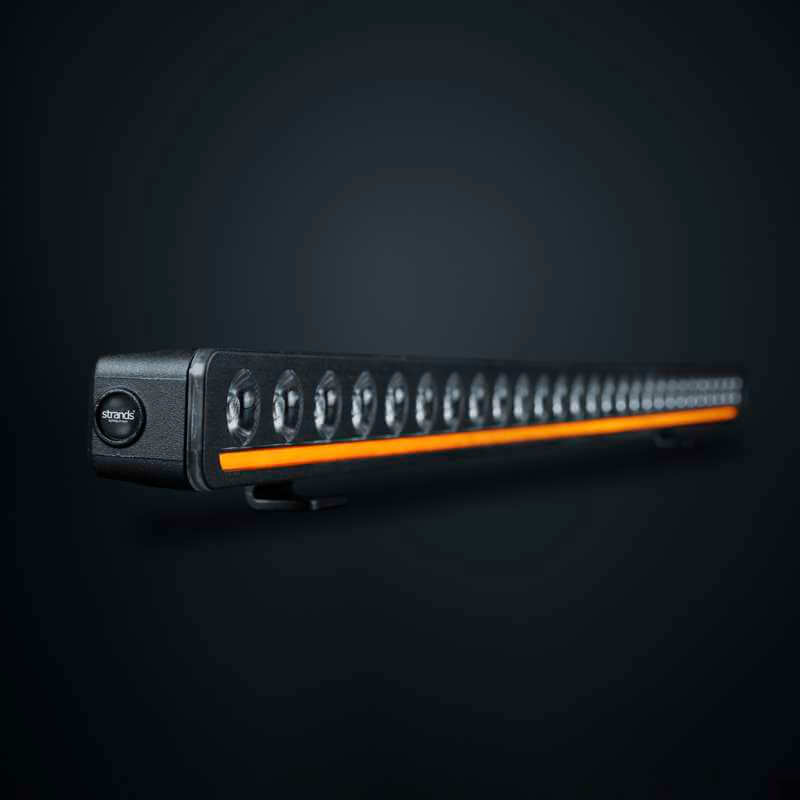

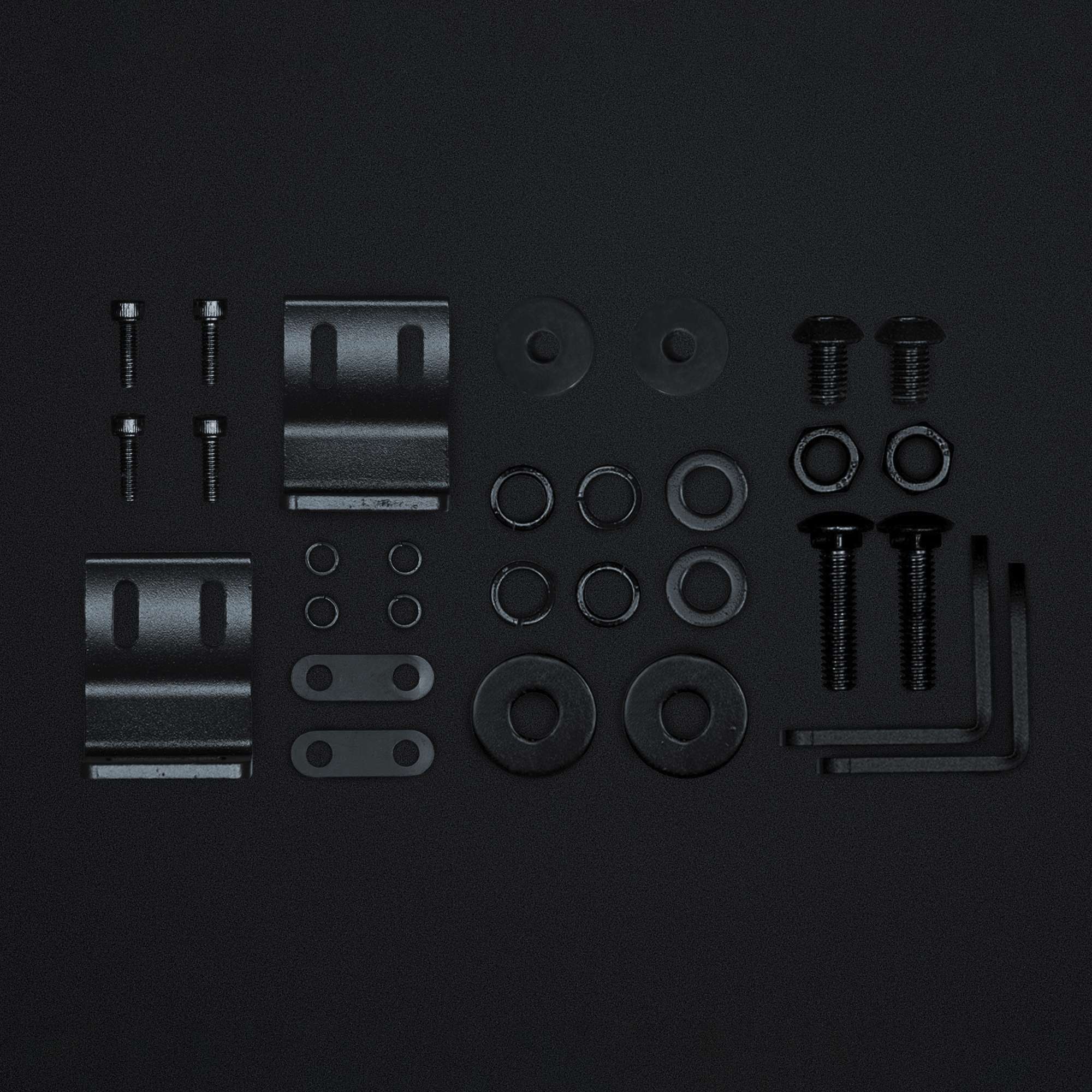

The integrated white and amber position light provides a distinctive look and additional visibility. Thanks to the integrated relay and complete mounting kit, installation is quick. Developed by Strands Lighting Division and backed by a 3-year warranty, this Strands Lightbar is a reliable solution for both on-road and off-road use.

Unit
PCS
Voltage (DC) (V DC)
10-36
Theoretical effect (W)
165
Consumption (W)
165
Functions
Xperience modeE-approved modeWhite pos.Amber Pos.
Consumption specific function
X-mode 165WE-mode 34WWhite pos. 14WAmber pos. 14W
Theoretical lumen (lm)
15000
Actual lumen (lm)
15500
1 lux @ (m)
556
Color temperature (K)
5000
Beam pattern
Extended Beam
Beam angle (°)
31.1
Connection
Cable
Cable length (mm)
2500
Color housing
Black
Color lens
Black

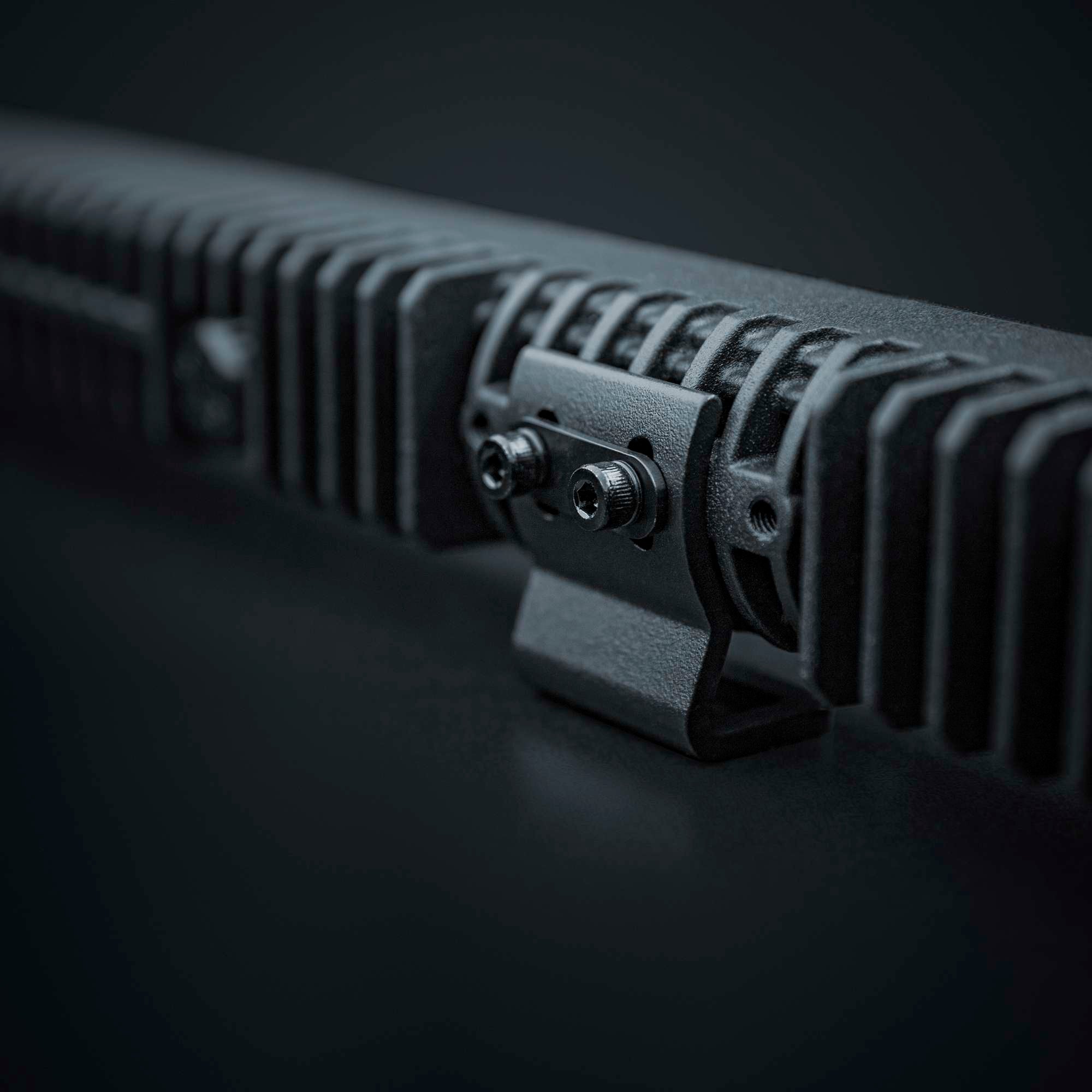

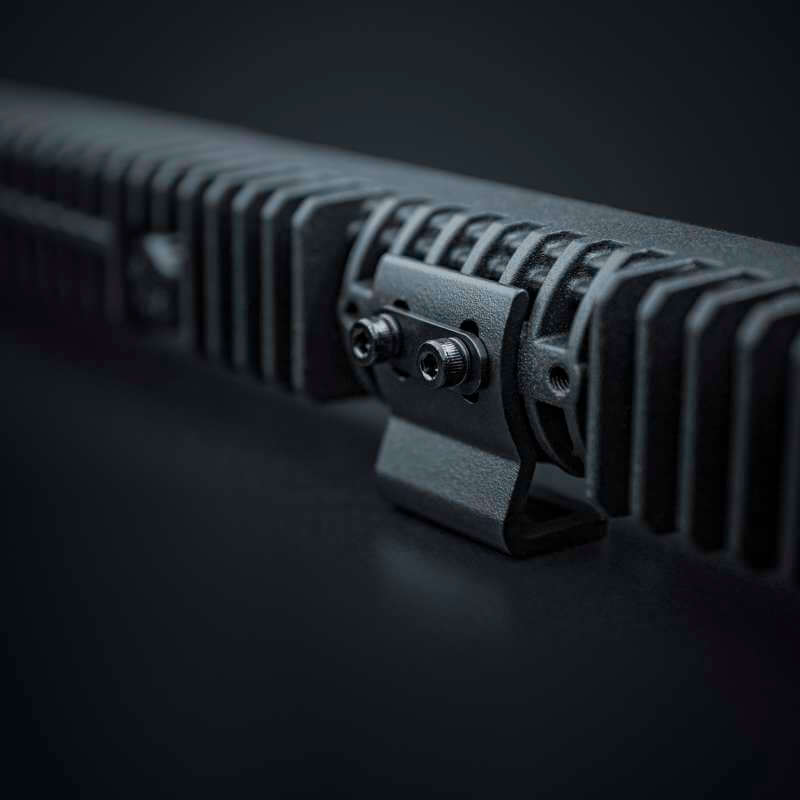

Material bracket
Stainless steel
Material housing/chassi
Aluminum
Material lens
Polycarbonate

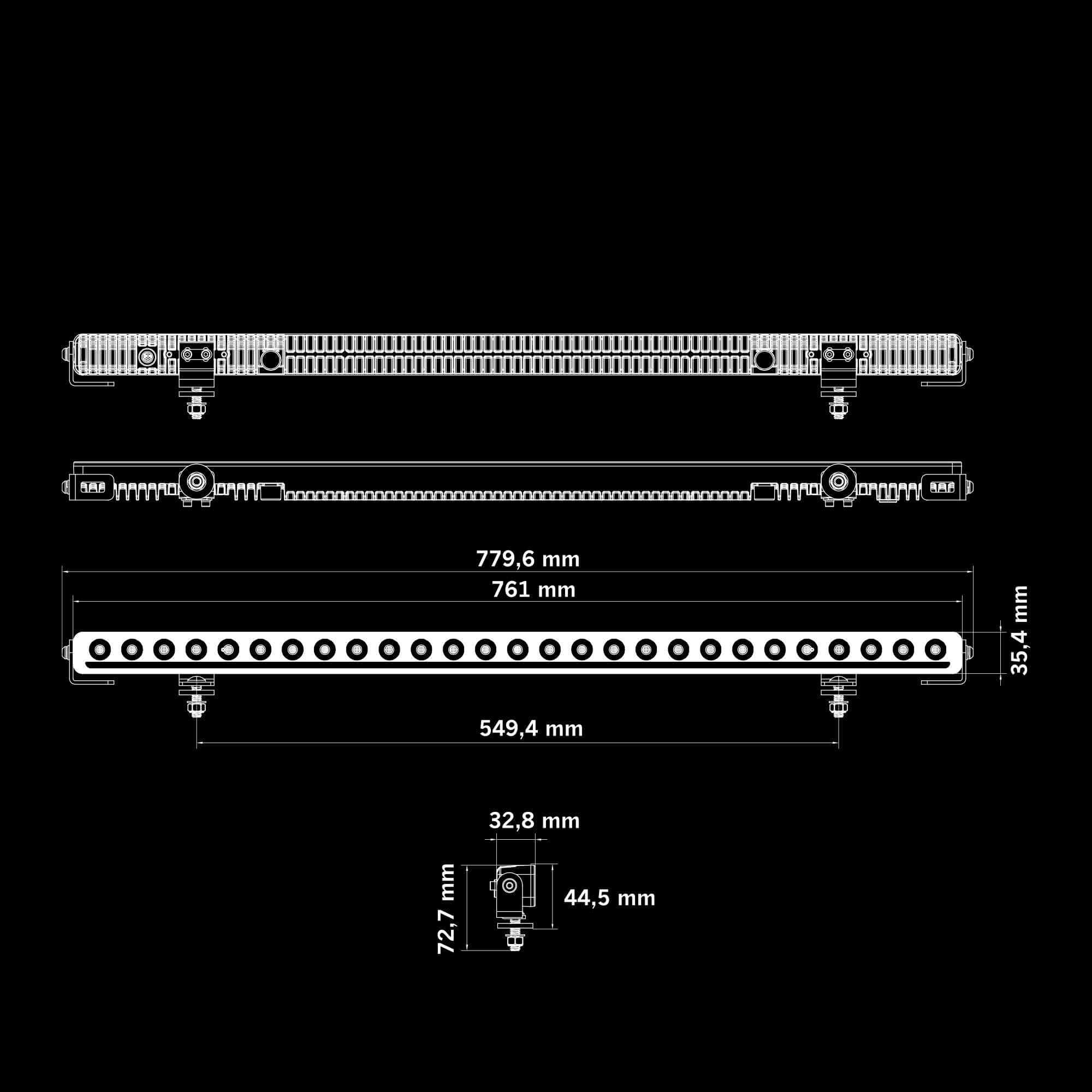

Length (mm)
761
Depth (mm)
32.8
Height (mm)
35.4
Height including bracket (mm)
44.5
Weight (kg)
1.8
IP-class
IP68/69K
Operating temperature (°C)
-40 - +60
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

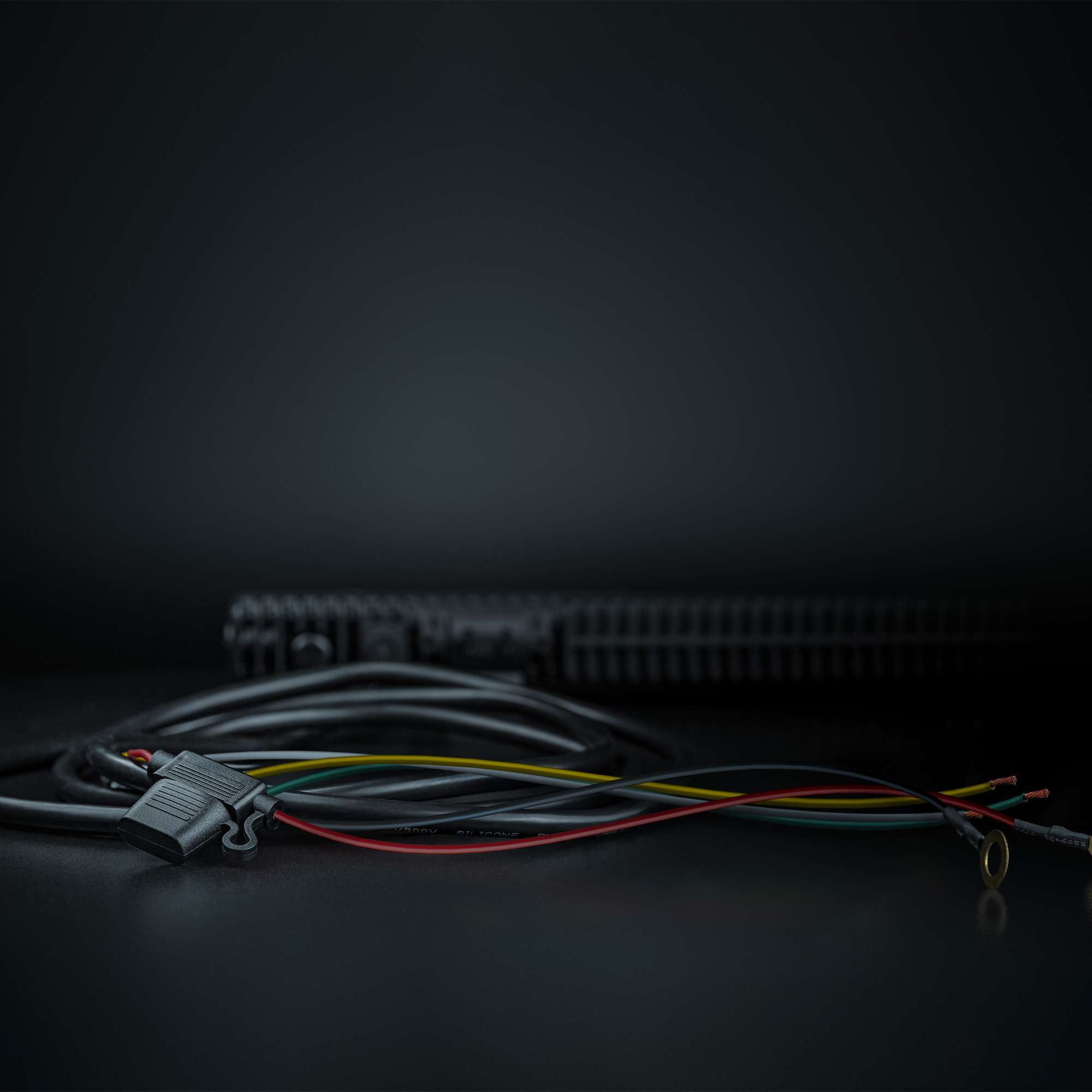

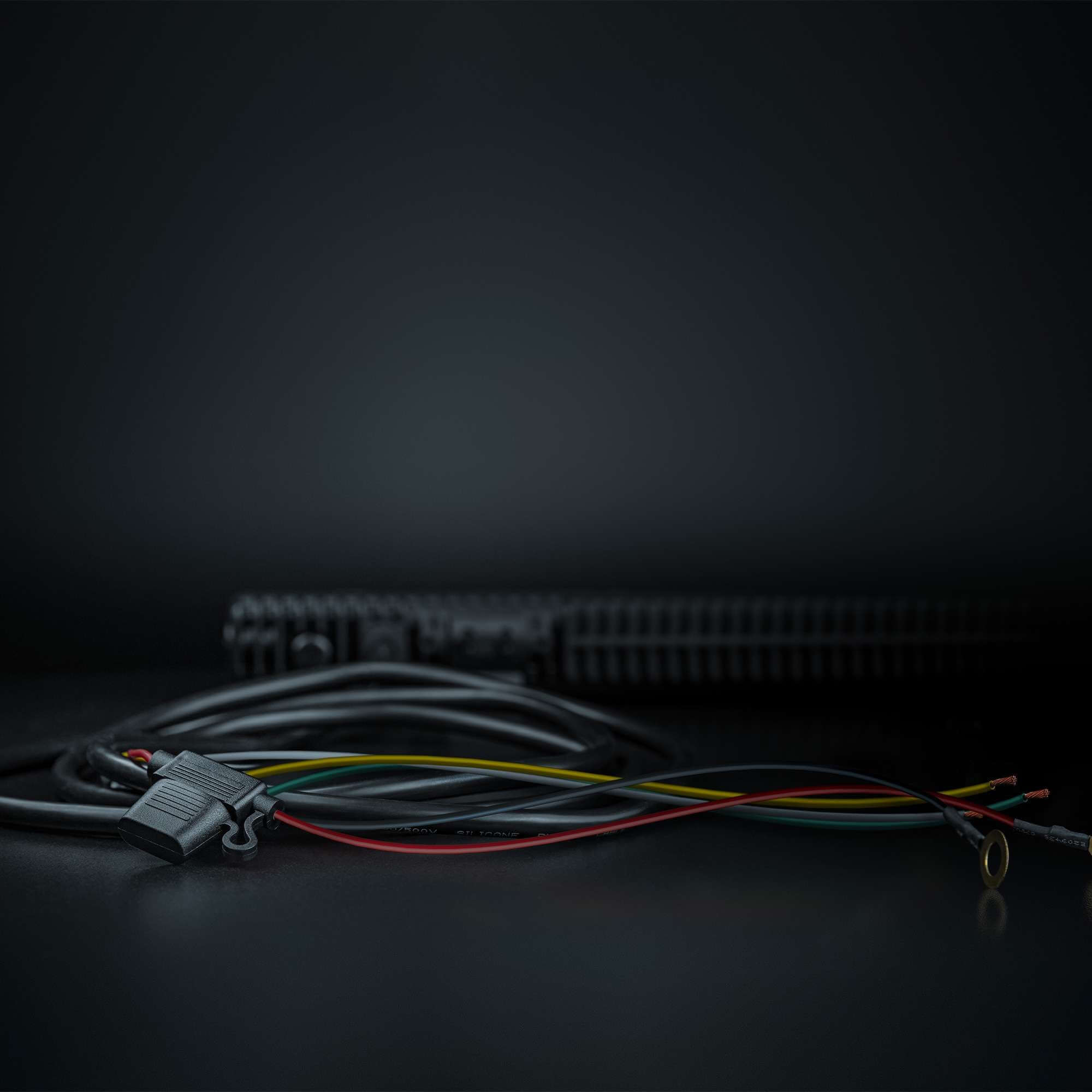

Cable assignment

Black
- (Negative)
Red
+ (Positive)
White
+ (weiße Positionsleuchte)
Yellow
+ (Amber position light)
Green
+ (on/off signal line for high beam)
Manual Product sheet
