Strands SIBERIA XP DR LED BAR 12″

10-32 V
84 W
6120 lm
IP68/69K
Sale price2.000 kr Regular price2.376,00 kr
Save 376,00 kr

Tax included. Free Shipping from 2.240 kr.*

In stock – estimated delivery in 3 to 5 working days
Strands SIBERIA XP DR LED BAR 12″ – Video

GTIN: 7323030192723SKU: 809426

The Strands Siberia XP Double Row LED auxiliary light was developed for maximum light output in a compact design. The double row design ensures significantly improved illumination and delivers up to 100% more power compared to the previous generation. The 12-inch model combines a wide beam pattern with 1,925 lumens in E-mode and a powerful 6,120 lumens in Xperience mode, achieving a visibility range of up to 529 meters.

With a color temperature of 5,700 Kelvin, the Strands LED Lightbar produces a clear, high-contrast light image. The integrated white and amber position light gives the Strands LED auxiliary light a striking appearance and ensures additional visibility on the road.

The compact design makes this Strands Lightbar ideal for tight installation spaces. The robust, powder-coated housing is designed for off-road use and reliably withstands vibrations, dirt, and water (IP68/IP69K). Installation is simple via the DT-4 connector with 200 mm cable. Developed by Strands Lighting Division and backed by a 3-year functional guarantee, the auxiliary light meets all relevant ECE standards, making it a reliable solution for road and off-road use.

Unit
PCS
Voltage (DC) (V DC)
10-32
Consumption (W)
84
Functions
Xperience modeE-approved modeWhite pos.Yellow pos.
Consumption specific function
X-mode 84WE-mode 25WWhite pos. 11.5WYellow pos. 11.5W
Theoretical lumen (lm)
7000
Actual lumen (lm)
6120

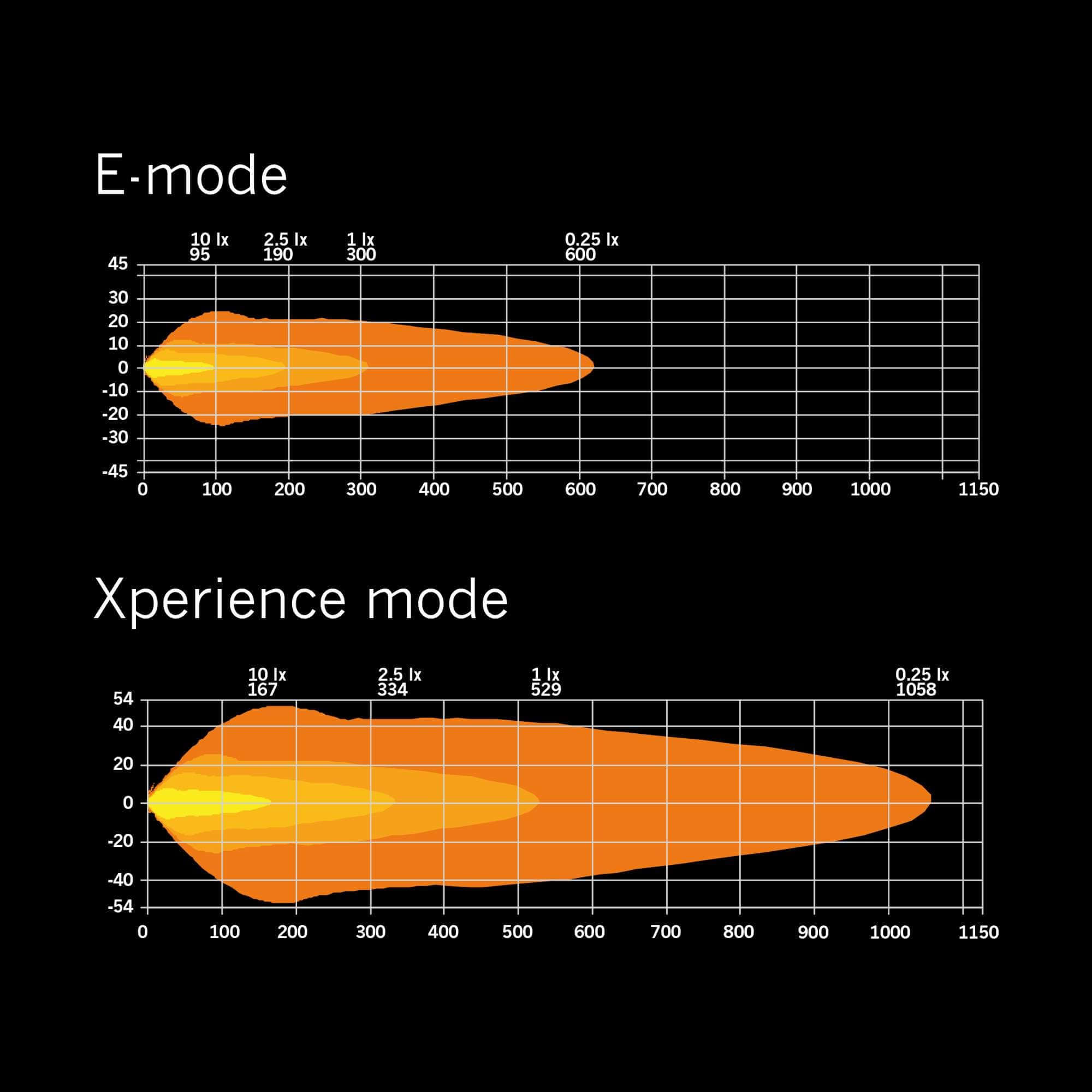

1 lux @ (m)
529
Color temperature (K)
5700
Beam pattern
Extended Beam
Beam angle (°)
15.4
Connection
DT-4PIN
Cable length (mm)
200
Color housing
Black
Color lens
Clear
Color LED's
White | Yellow
Material bracket
Aluminum
Material housing/chassi
Aluminum
Material lens
Polycarbonate

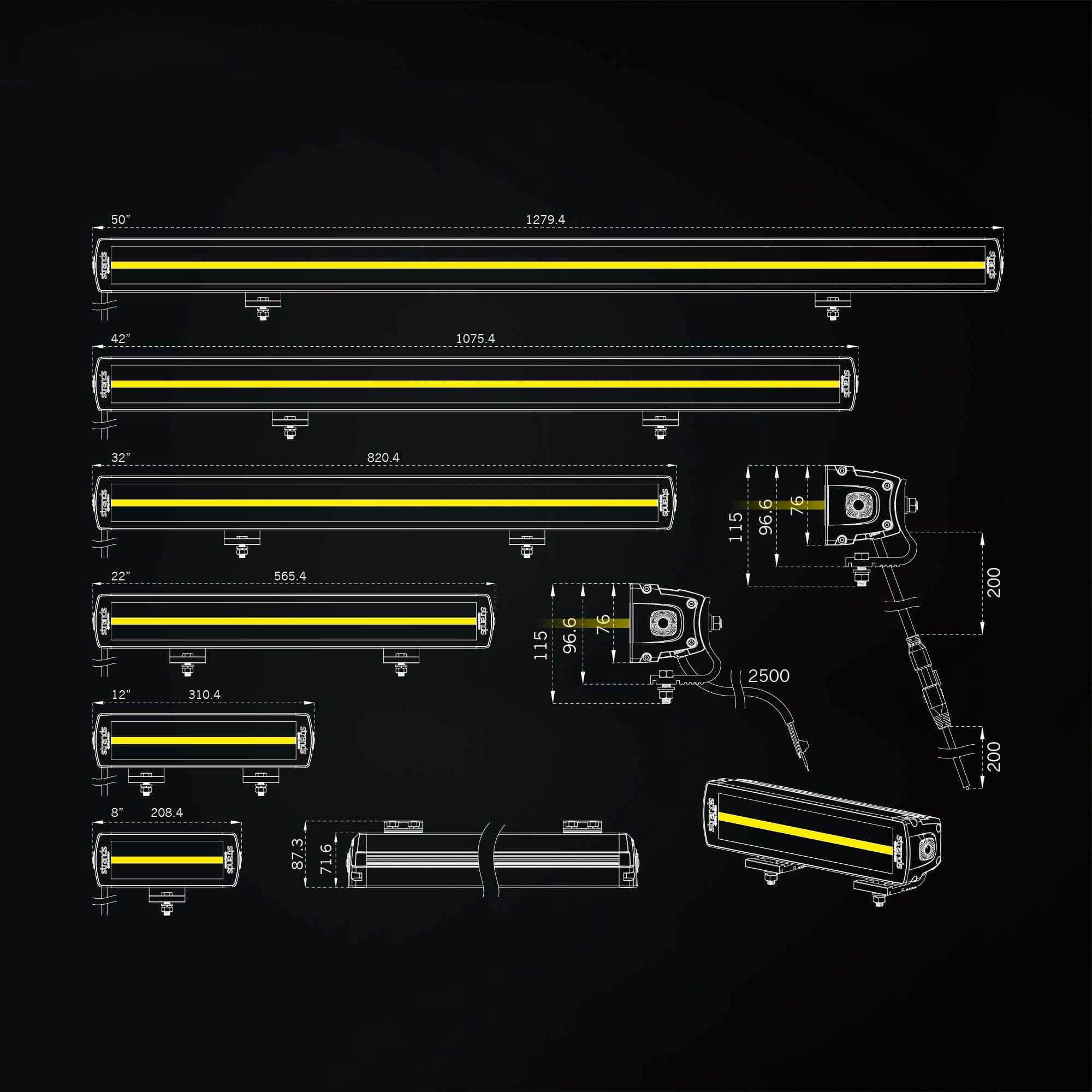

Length (mm)
310.4
Depth (mm)
71.6
Height (mm)
76
Height including bracket (mm)
96.6
Weight (kg)
1.93
IP-class
IP68/69K
Operating temperature (°C)
-35 - +65
E-approved
Yes
ECE approval
R10.06R148R149
Reference number
20

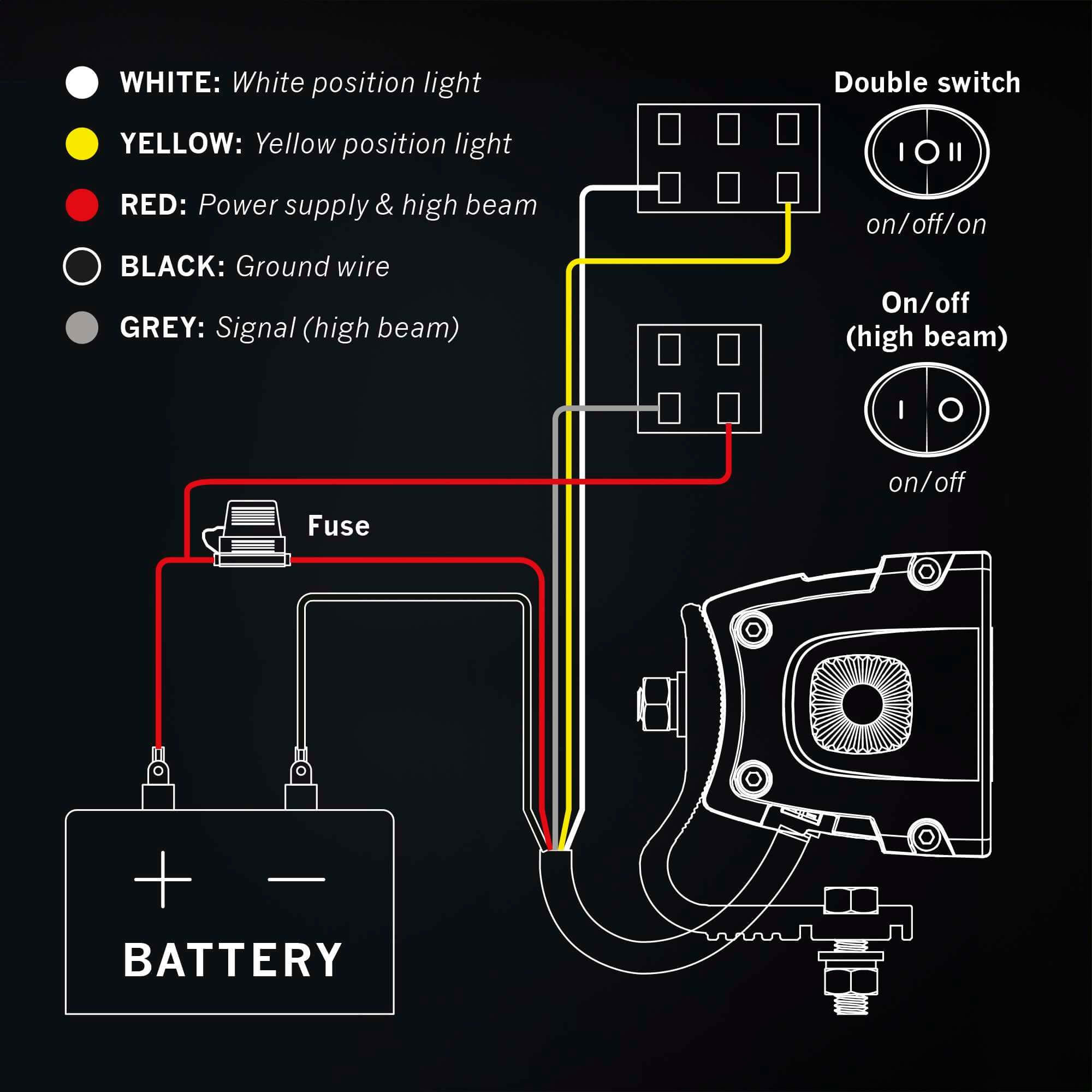

Cable assignment

Black
- (Negative)
Red
+ (Positive)
White
White position lamp
Yellow
Yellow Position Light
