Elektrische Seilwinde Gamma 1,6 Tonnen ATV

Electric Winch Gamma 1.6 tons ATV

From 5.7 kgSynthetic or Steel Rope5-Year Warranty

1.840 kr

Tax included. Free Shipping from €300*

Voltage: 12V

12V 24V

Rope type: Synthetic rope

Synthetic rope Steel cable

In stock - estimated delivery in 3–5 business days

The horntools Gamma 1.6 t is a compact and especially lightweight winch for quads, ATVs and other small vehicles. Available in 12V or 24V, with a flexibly positionable control unit and rugged construction, it's ideal for versatile pulling and recovery tasks as well as use as a rear winch.

Description

Electric winch Gamma 3.5

The ideal winch for your quad, ATV, other small vehicle or as a rear winch system. Despite its compact size, the winch generates a pulling force of 1.6 tons. You can use it optimally as a rear winch, for example for hunting. The carrier and winch can be purchased either individually or as a complete system.

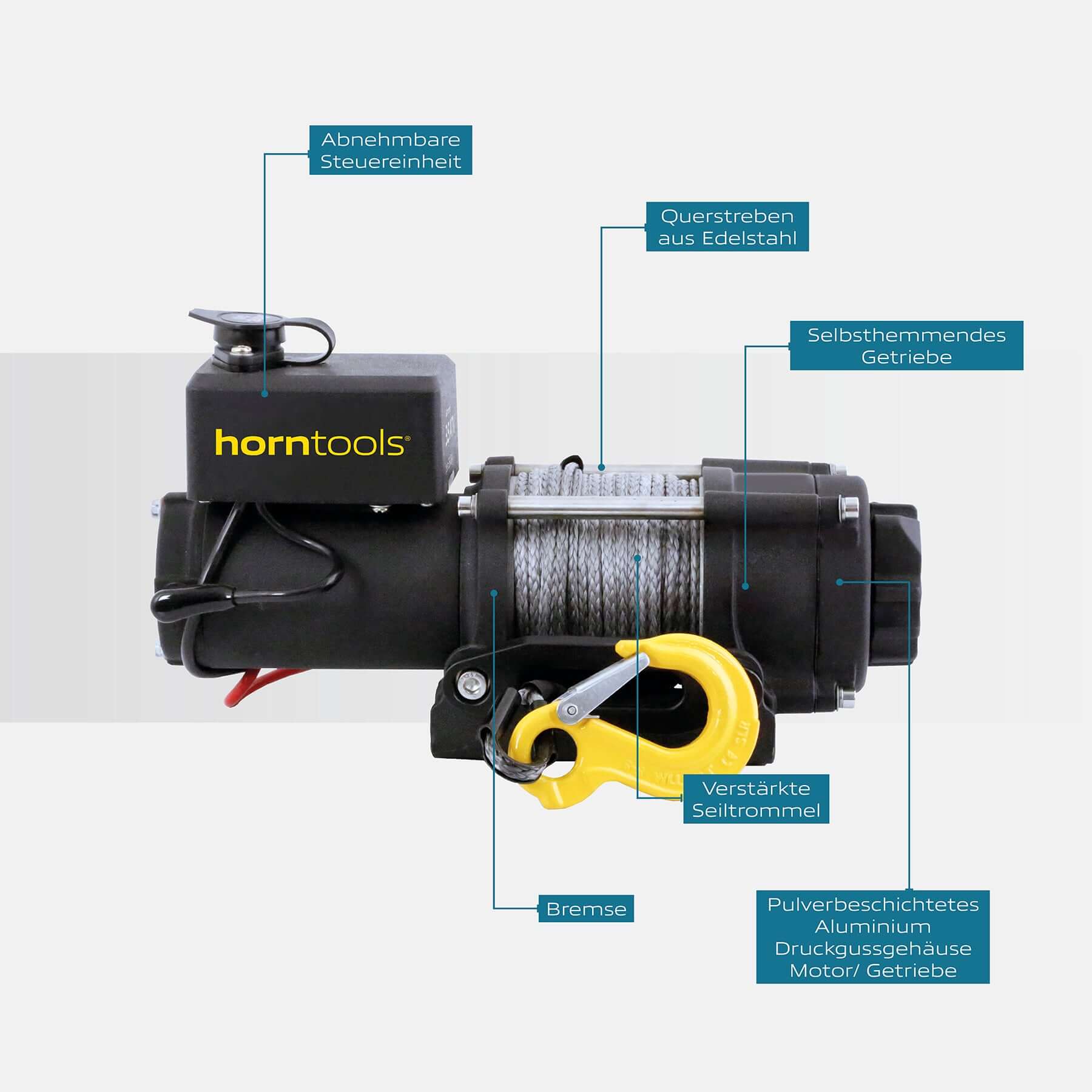

Characteristics:

Freewheel lever
Stainless steel crossbars
Reinforced rope drum
Powder-coated aluminum die-cast housing motor/gearbox
Self-locking gear
Removable control unit (so that the control can be installed anywhere)

Scope of delivery:

Winch
Aluminum cable window
Mounting plate
Fastening screws
Synthetic rope with hooks
Snatch block with hook
Cable remote control with mounting kit for quad handlebars
Operation manual

Danger:

Please note that our winches may only be used for ground traction and are not suitable for lifting! The operating instructions for the winch must be read completely before use and must be strictly followed, otherwise there is a risk of injury!

Guarantee:

We grant a 5-year guarantee on the gearbox and drum of the winch in compliance with the guarantee and service regulations. To do this, please fill out our warranty application in our user manual and send it back to us by email. The guarantee only applies to private users, not to commercial use and only if the operating instructions are followed.

A notice:

You can get all the important information about handling your new winch in the operating instructions and from your specialist dealer. This winch can produce a higher level of noise.

Technical data

12 Volt

Gearbox: 3-stage planetary gearbox
Max. tractive force: 1.6 tons

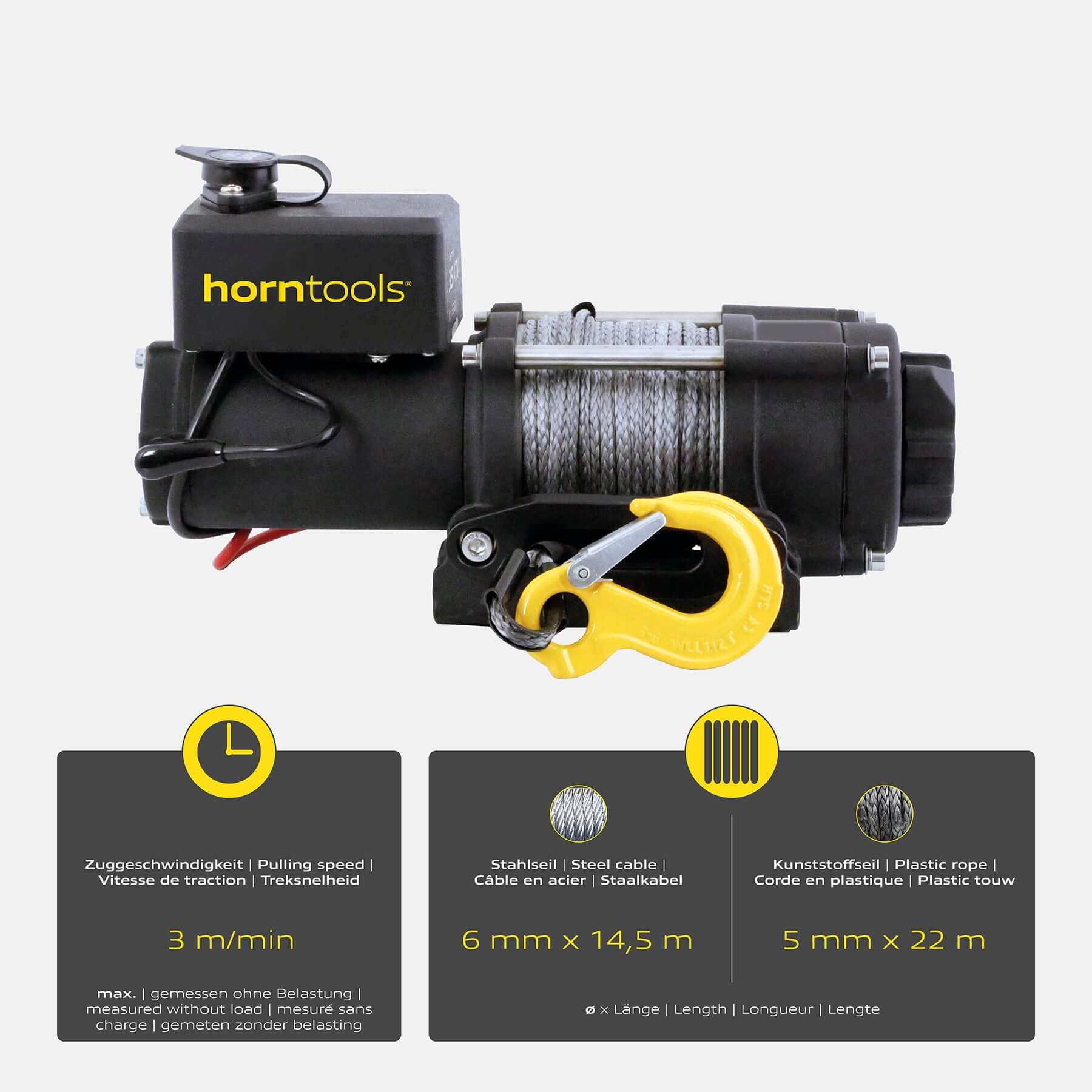

Max. pulling speed: 3 m/min*
Motor power: 3.4 hp
Motor type: Permanent magnet**
Reduction ratio: 166:1
Max. Power consumption: 220 amps
Voltage: 12 V
Steel cable (∅ x length): 6 mm x 14.5 m
Synthetic rope: 5 mm x 30 m
Drum (∅ x length): 51 x 125 mm

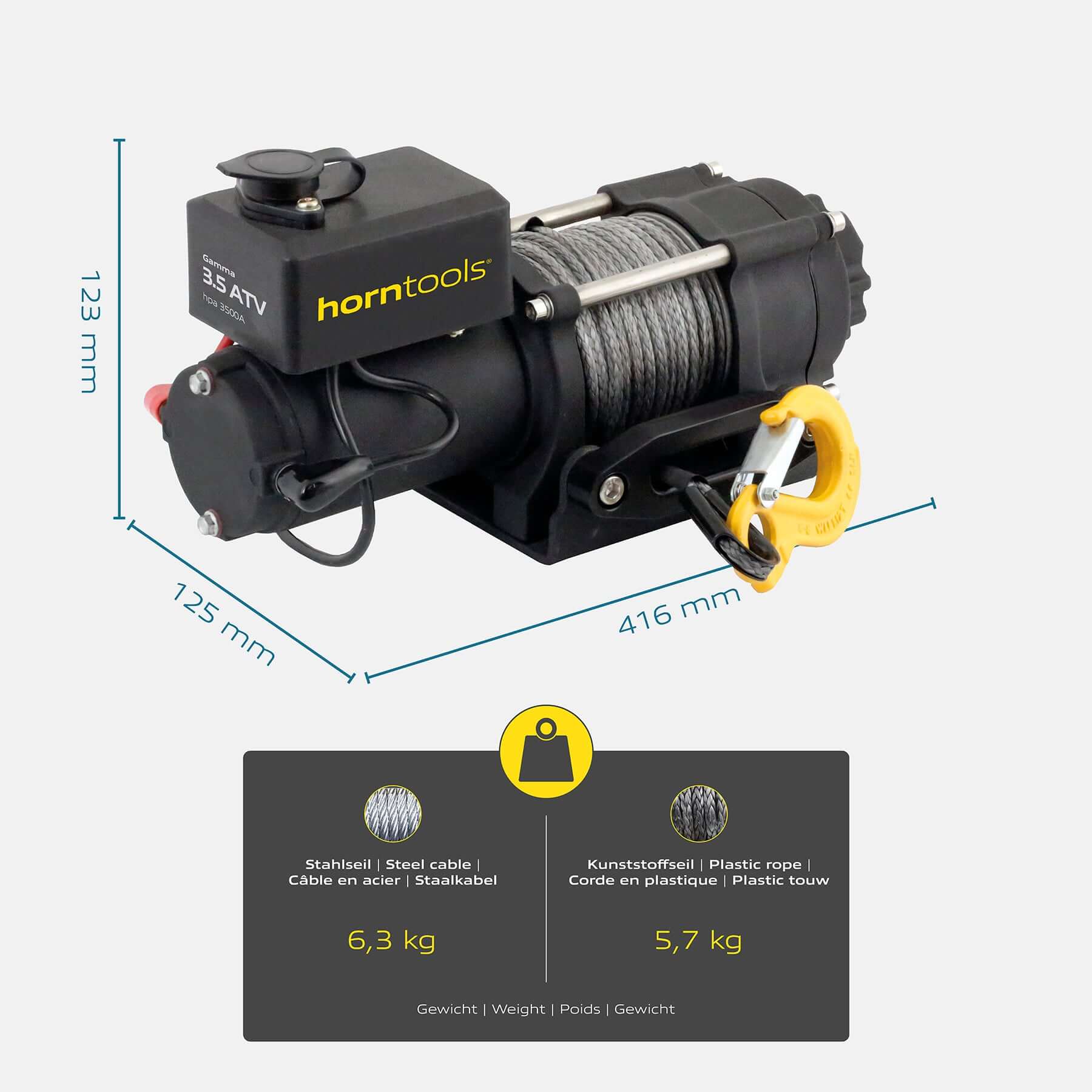

Overall size (LxWxH): 340 x 125 x 180 mm
Weight of winch without rope: 5 kg
Weight of winch with synthetic rope: 5.7 kg
Weight of winch with steel rope: 6.3 kg
Cable cross-section: 8 mm²
Cable length: 170 cm

24 Volt

Gearbox: 3-stage planetary gearbox
Max. pulling force: 1.6 tons
Max. Pulling speed: 3 m/min*
Motor type: Permanent magnet**
Ratio: 166:1
Max. power consumption: 120 amps
Voltage: 24 V
Steel cable (∅ x length): 6 mm x 14.5 m
Synthetic rope (∅ x length): 5 mm x 30 m
Drum (∅ x length): 51 x 125 mm
Total size (LxWxH): 340 x 125 x 180 mm
Weight of winch without rope: 5 kg
Weight of winch with synthetic rope: 5.7 kg
Weight of winch with steel rope: 6.3 kg
Cable cross-section: 8 mm²
Cable length: 170 cm

* measured without load
** magnetic field is generated by means of permanent magnets

Instructions & Drawing

User manual

Drawing
